Nine9

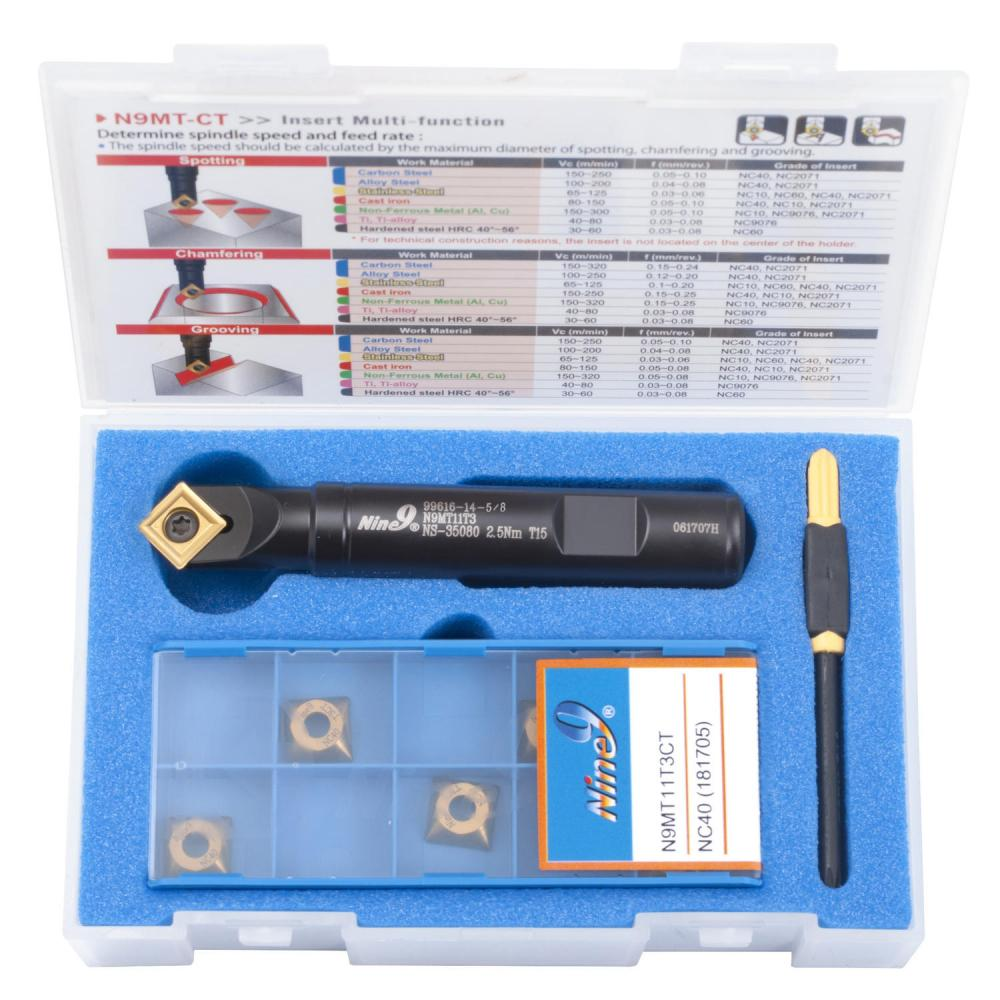

Nine9 Indexable NC Spot Drill Starter Kit with TiN Inserts

(00-99616-14-IN6)

5/8" Shank

SKU: 109-614202-4401

Nine9 Tool Indexable NC Spot Drill - A single cutting edge design creates higher precision when spotting.
Applications: For spotting, engraving, small grooving on milling machines, machining corners.

Indexable Tool - selected package for starter who wants to try NC Spot Drill. Included one (1) insert on tool holder and five (5) inserts in the pocket. Total six (6) inserts are equal to 24 spot drills.

Insert Type: N9MT11T3CT/P60
Angle: 60/90 Degrees
Shank Diameter: 5/8"
Overall Length: 100mm
Material: Steel
Screw: NS-35080 2.5 Nm
Key: NK-T15

Angle: 90 Degree
Coating: TiN
Grade: NC40
Edge Length: 11.11mm
Thickness: 3.97mm
Corner Radius: 0.8mm
