Nine9

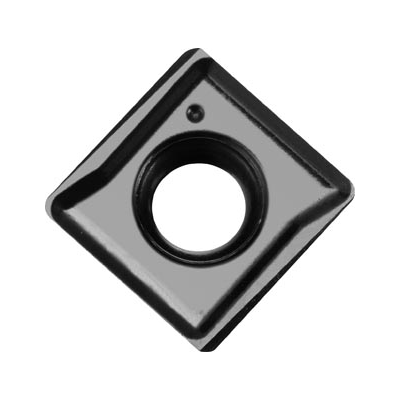

Nine9 Indexable Carbide Insert (N9MT11T3CT2T-H-NC9076)

DLC Coating (Polished)

SKU: 109-014203

Indexable Centering Insert - H-NC9076: High positive geometry and sharp edge. For non-ferrous material such as aluminum, titanium, brass, copper, and long cutting chip metal. Produces excellent surface finish on non-ferrous metal.

Each insert has 2 cutting edges.

Applications: For spotting, engraving, small grooving on milling machines, machining corners.

Angle: 90 Degree
Coating: DLC
Grade: H-NC9076
Edge Length: 11.11mm
Thickness: 3.97mm
Corner Radius: 0.8mm
