Nine9

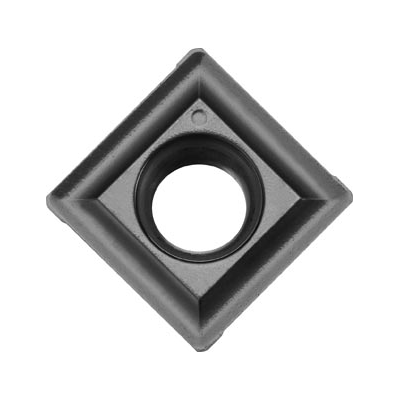

Nine9 Indexable Carbide Insert (N9MT11T3CT-NC10)

TiAlN Coating

SKU: 109-014402

Indexable Carbide Insert - NC10: High positive angle and fully ground cutting edge and relief angle. Universal grade for non-ferrous metal, cast iron and stainless steel.

Each insert has 4 cutting edges.

Applications: For spotting, engraving, small grooving on milling machines, machining corners.

Angle: 90 Degree
Coating: TiAIN
Grade: NC10
Edge Length: 11.11mm
Thickness: 3.97mm
Corner Radius: 0.8mm
