Dormer-Pramet

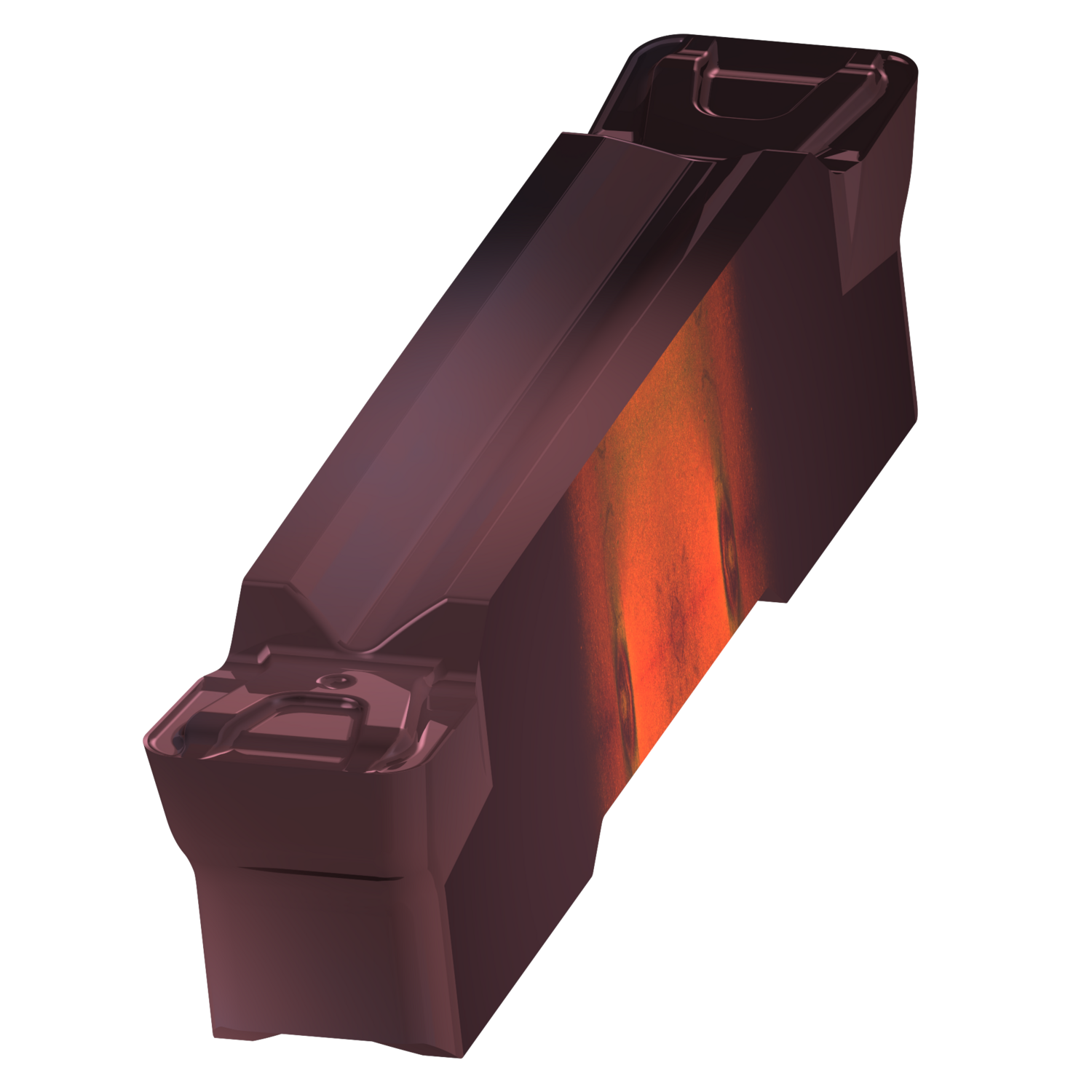

Double ended parting and grooving insert, 25 mm long with a 5 mm cutting width and 0.8 mm corner radii, a cutting width tolerance of ±0.05 mm. Combination of GM versatile geometry for grooving and longitudinal turning, and continuous to interrupted cuts. and PVD Coated WC-Co based substrate fine grained (< 1 µm) G8415. is suitable for materials: P - Steel and cast steel (steels with alloy content ? 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ? 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel).

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8995750
