Dormer-Pramet

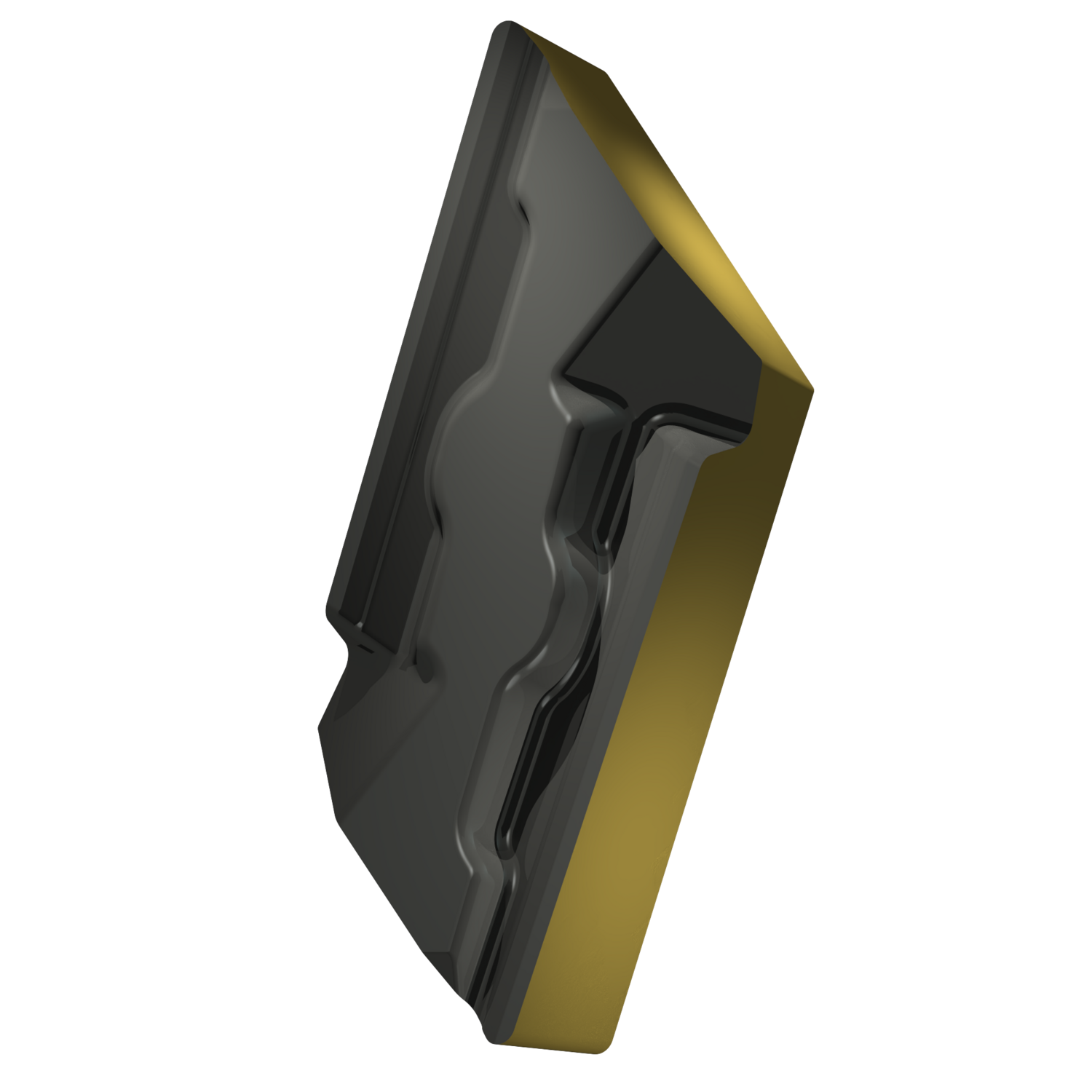

Double-sided Negative turning insert, K - parallelogram 55° included angle, size 16 with corner radius 0.5 mm. Combination of chipbreaker R-22 geometry with right-handed design for finish to semi-rough machining, and continuous cuts. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ? 10% and a hardness of < 45HRC) and Continuous cut.

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8985846
