S9545/16

S9545/16

$63.72 CAD $124.00 CAD
Skip to product information
S9545/16
S9545/16

Dormer-Pramet

S9545/16

Material ID: 8962007

$63.72 CAD $124.00 CAD

S9545/16

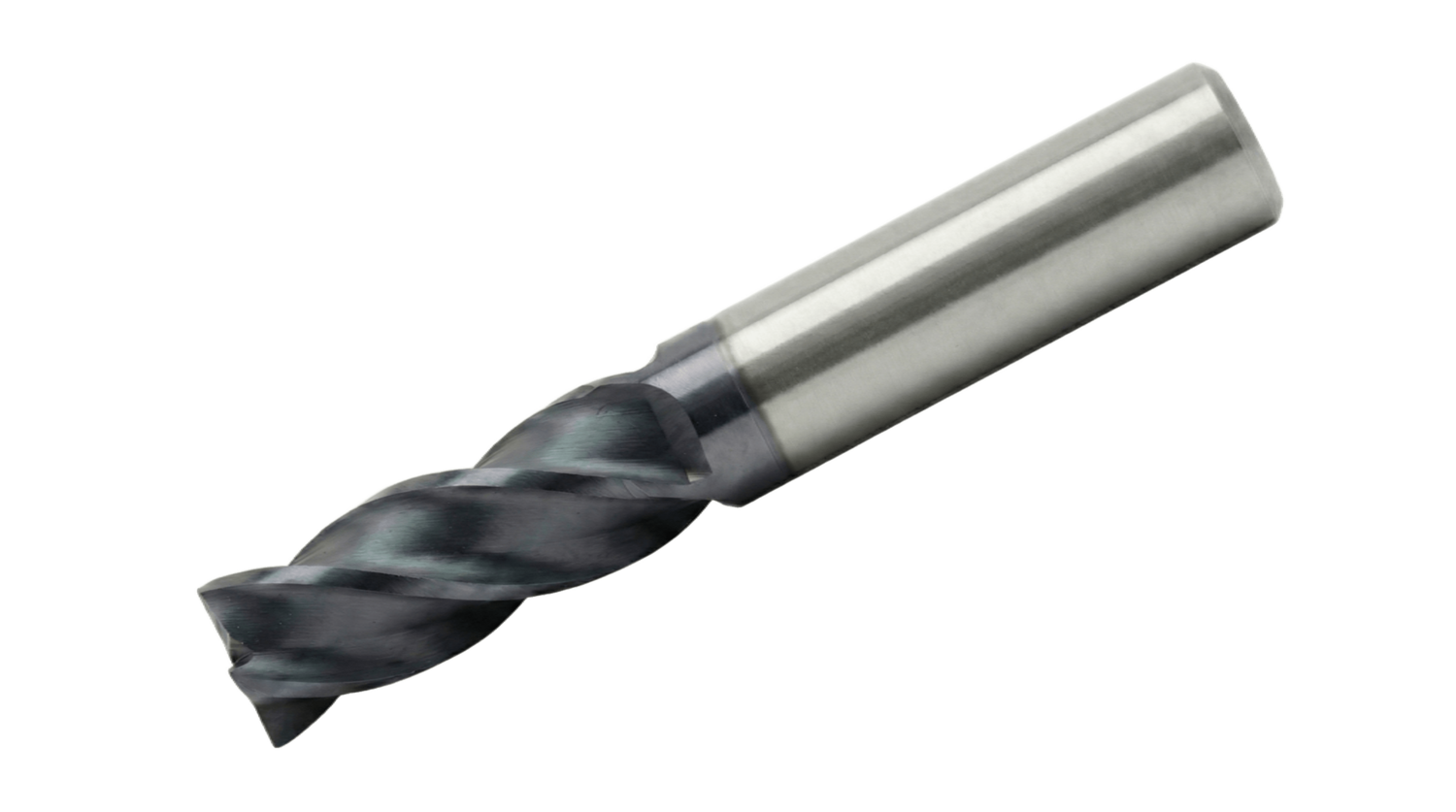

4-Flute Solid Carbide Chamfered End Mill

Material ID: 8962007


Round tool with cutting diameter 7.94 mm, corner chamfer 45°, maximum depth of cut 22.225 mm and OAL 63.5 mm. DCON MS 7.94 mm with Cylindrical shank. TiAlN coating. Suitable for M - Stainless steel (corrosion resistant steels with ? 11% chromium content), P - Steel and cast steel (steels with alloy content ? 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8962007
