Dormer-Pramet

S9543/8

Material ID: 8962006

$83.25 CAD $162.00 CAD

S9543/8

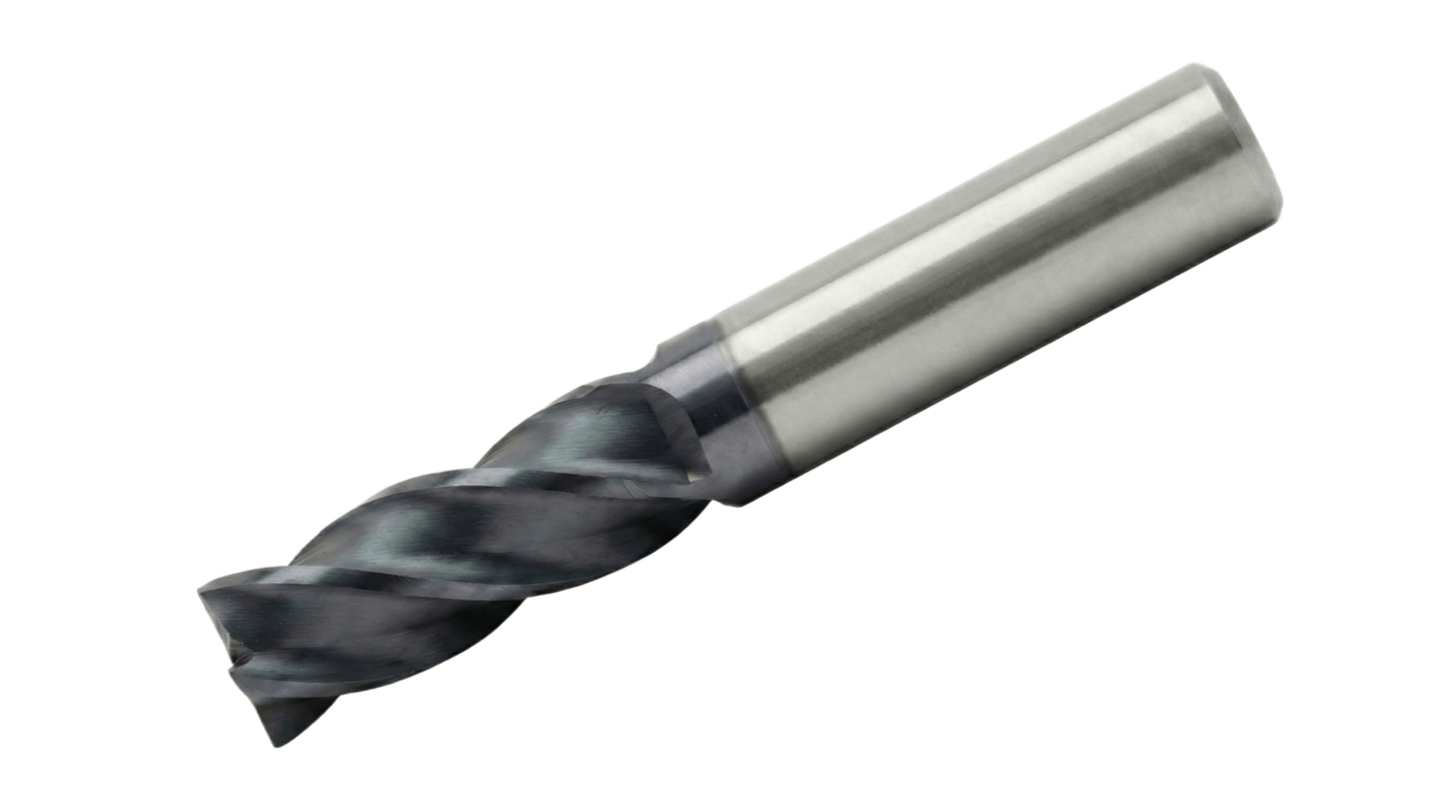

4-Flute Solid Carbide Chamfered End Mill

Material ID: 8962006


Round tool with cutting diameter 9.53 mm, corner chamfer 45°, maximum depth of cut 22.225 mm and OAL 63.5 mm. DCON MS 9.53 mm with Cylindrical shank. TiAlN coating. Suitable for M - Stainless steel (corrosion resistant steels with ? 11% chromium content), P - Steel and cast steel (steels with alloy content ? 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8962006
