S9543/32

S9543/32

$37.88 CAD $73.70 CAD
Skip to product information
S9543/32
S9543/32

Dormer-Pramet

S9543/32

Material ID: 8962004

$37.88 CAD $73.70 CAD

S9543/32

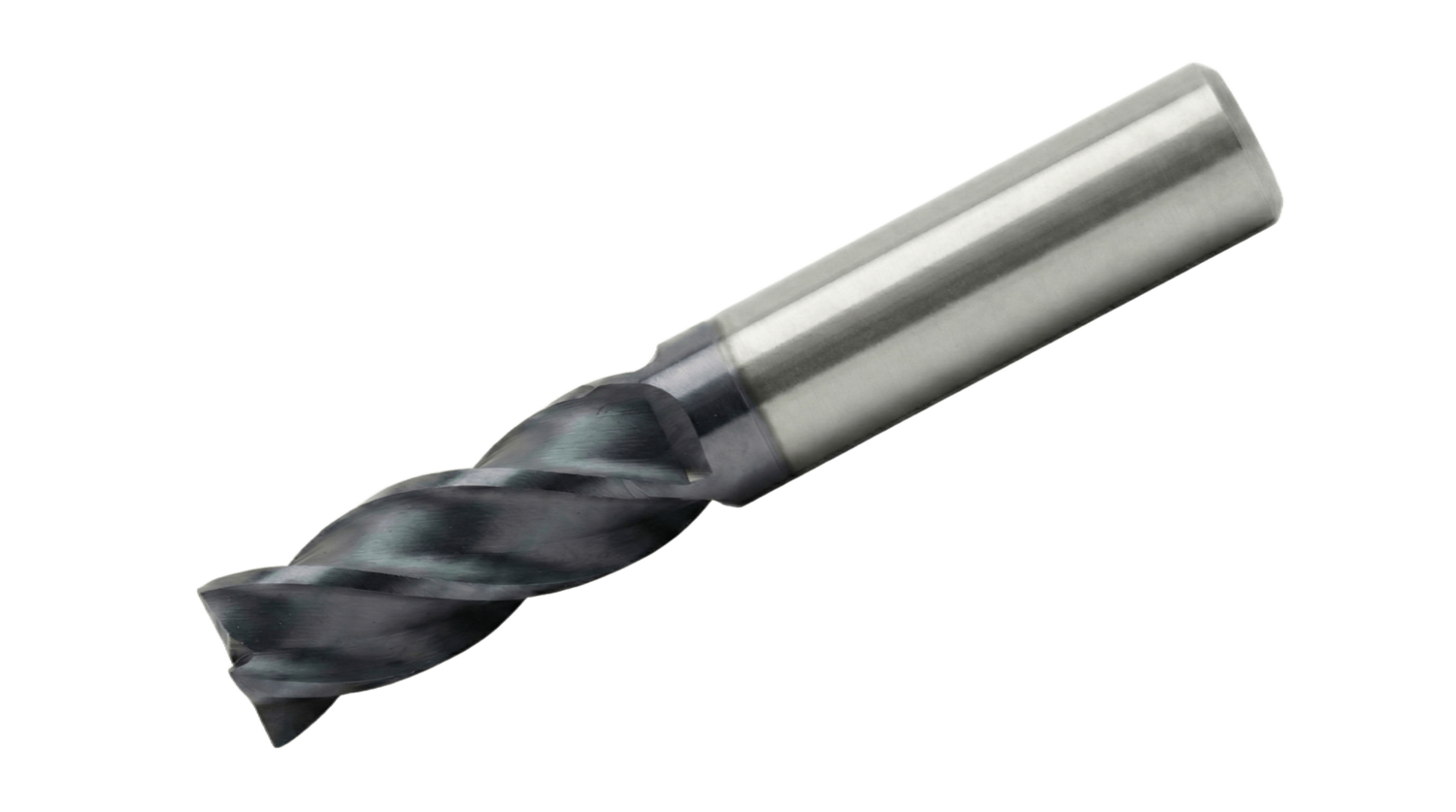

4-Flute Solid Carbide Chamfered End Mill

Material ID: 8962004


Round tool with cutting diameter 2.38 mm, corner chamfer 45°, maximum depth of cut 9.525 mm and OAL 38.1 mm. DCON MS 3.18 mm with Cylindrical shank. TiAlN coating. Suitable for M - Stainless steel (corrosion resistant steels with ? 11% chromium content), P - Steel and cast steel (steels with alloy content ? 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8962004
