Dormer-Pramet
RC4P9/64
Material ID: 8904193
Sale price
$157.36 CAD
Regular price
$206.00 CAD
RC4P9/64

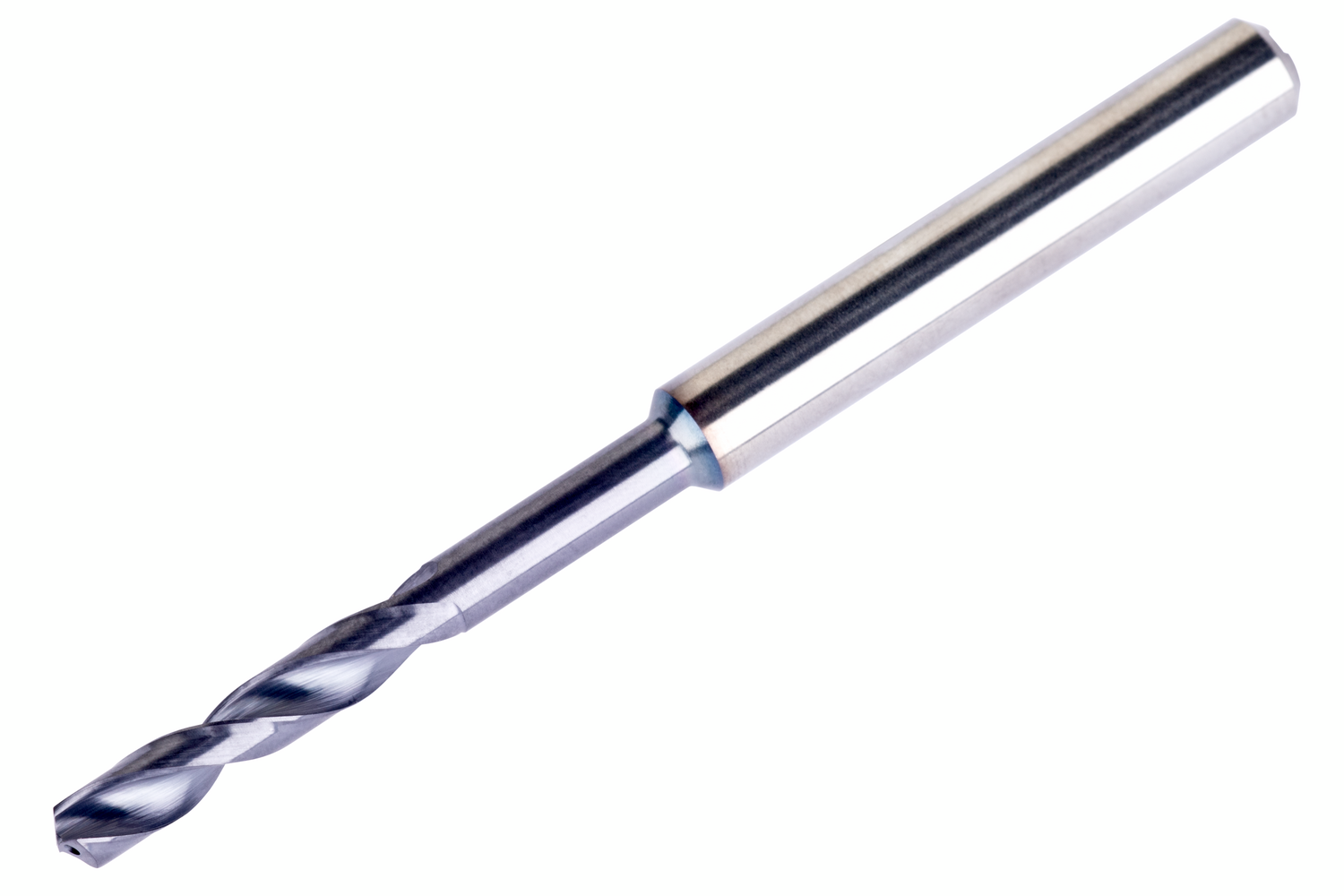

FORCE Pilot Solid Carbide Drill 2xD with Coolant Feed, Multi TiAlN Coated
Material ID: 8904193
Cutting diameter 9/64 inches specially designed pilot drill for precise hole positioning when using Force deep hole drills 16xD and 20xD. Features a 150° point angle and slightly larger drill tolerance p7 for accurate drilling of pilot holes up to 2xD. DCON MS 6 mm, LCF 20 mm and OAL 66 mm. Internal coolant channels provide enhanced cooling efficiency. TiAlN multilayer coating to minimize friction, suitable for various materials like steel, stainless steel, cast iron, and non-ferrous metals.
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
