Dormer-Pramet

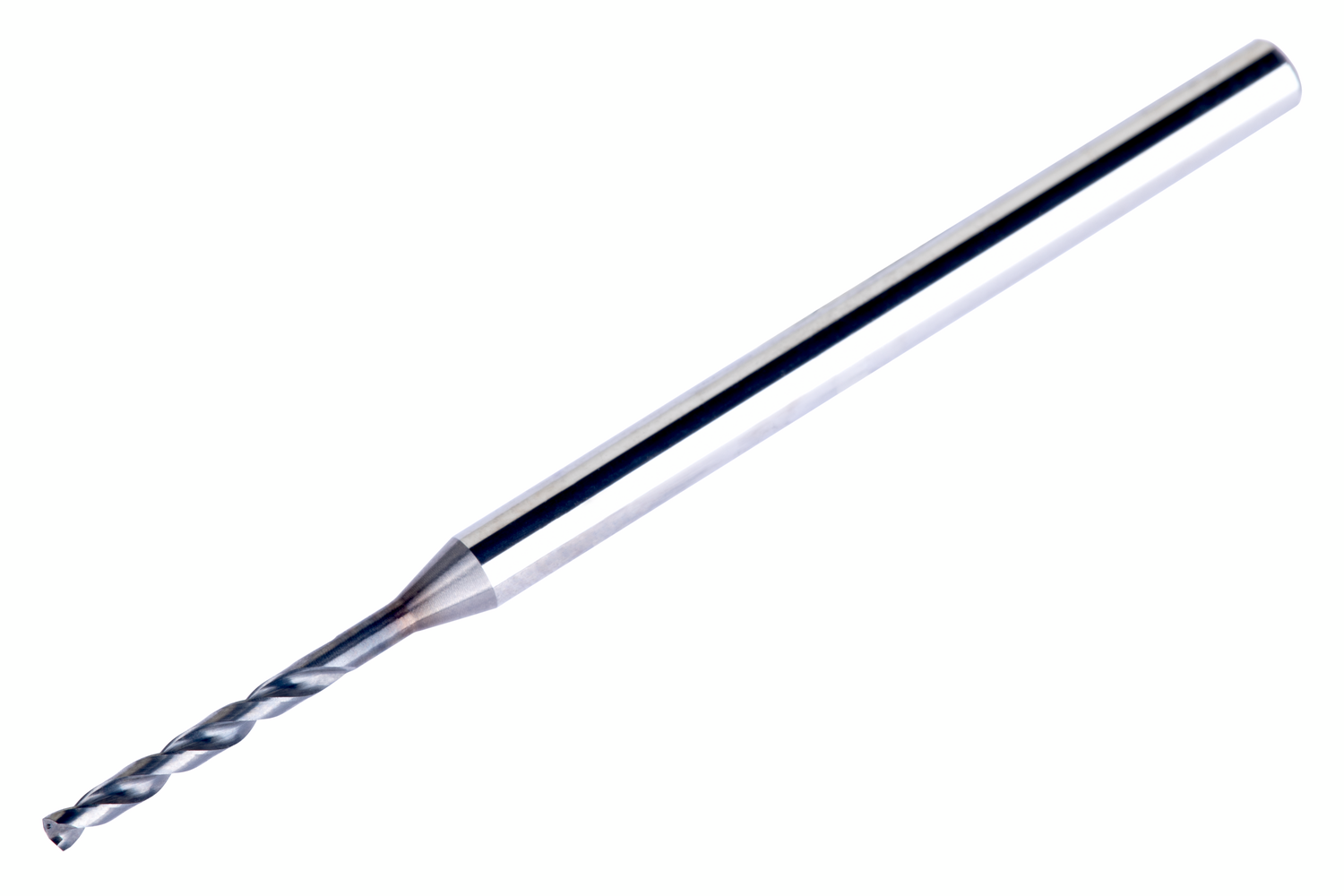

Cutting diameter 1.4 mm high-performance micro drill designed for precision applications, featuring a 140° point angle and capable of drilling up to 5xD with excellent surface quality. DCON MS 3 mm, LCF 12 mm and OAL 53 mm. Internal coolant enhances chip evacuation, while the advanced AlCrN coating provides outstanding wear resistance, thermal stability, and process reliability.

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8903896
