Dormer-Pramet

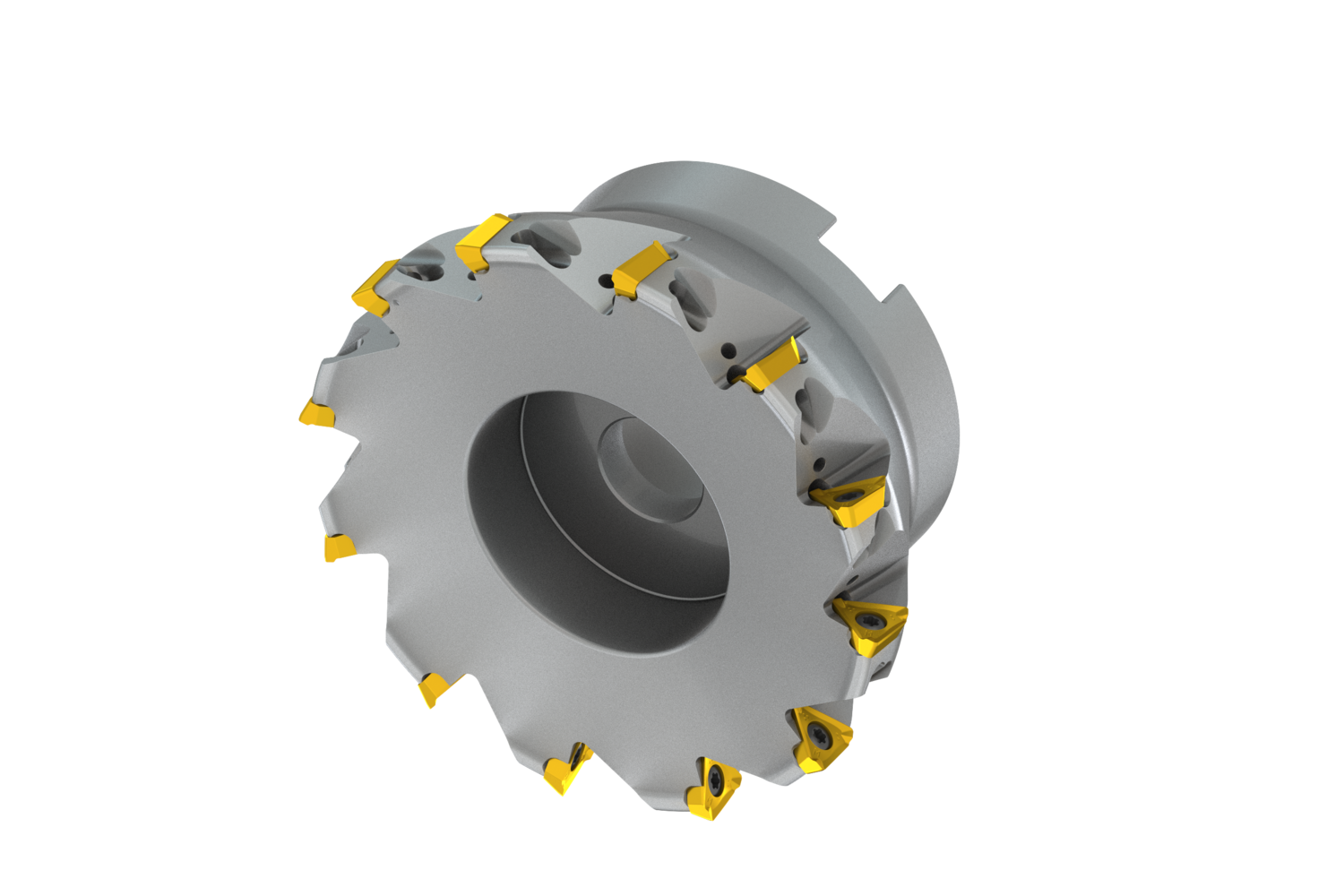

Shoulder mill with positve/negative geometry which utilises 12 of TD.. 17.... or TD.. 17.... single-sided inserts, cutting diameter 5.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030-A, 2.480'' protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .433''

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8782664
