Dormer-Pramet

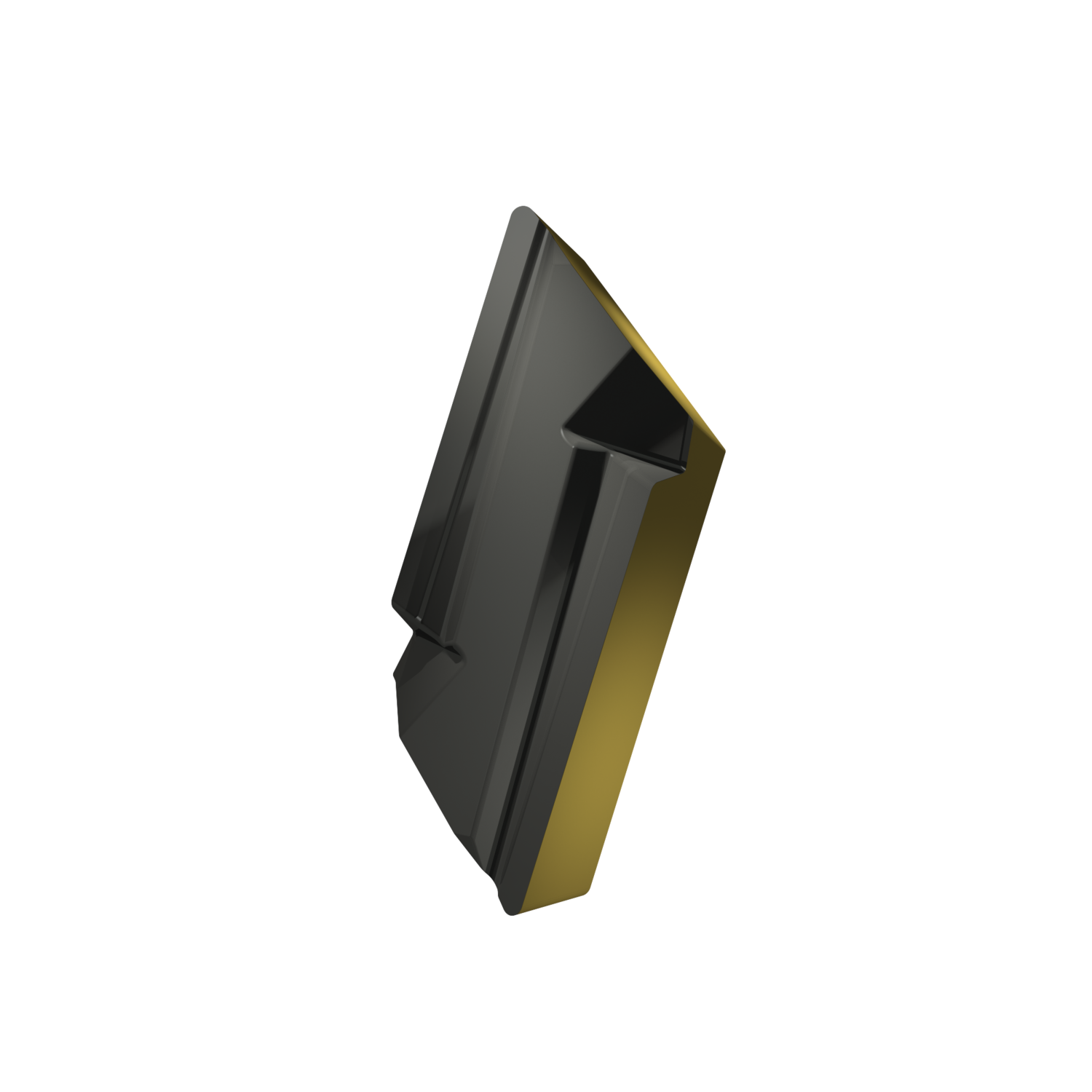

Special design negative turning insert, 55° parallelogram with a main edge length of 16 mm, 4.76 mm thick, 0.5 mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 72 with rounded cutting edges, in grade T5415, a MT-CVD coated WC-Co carbide within ISO range K10 - K25, for fine to medium machining of cast-irons with a right handed turning tool

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8716801
