Dormer-Pramet
E894M12
Material ID: 8450752
Sale price
$131.67 CAD
Regular price
$237.00 CAD
E894M12

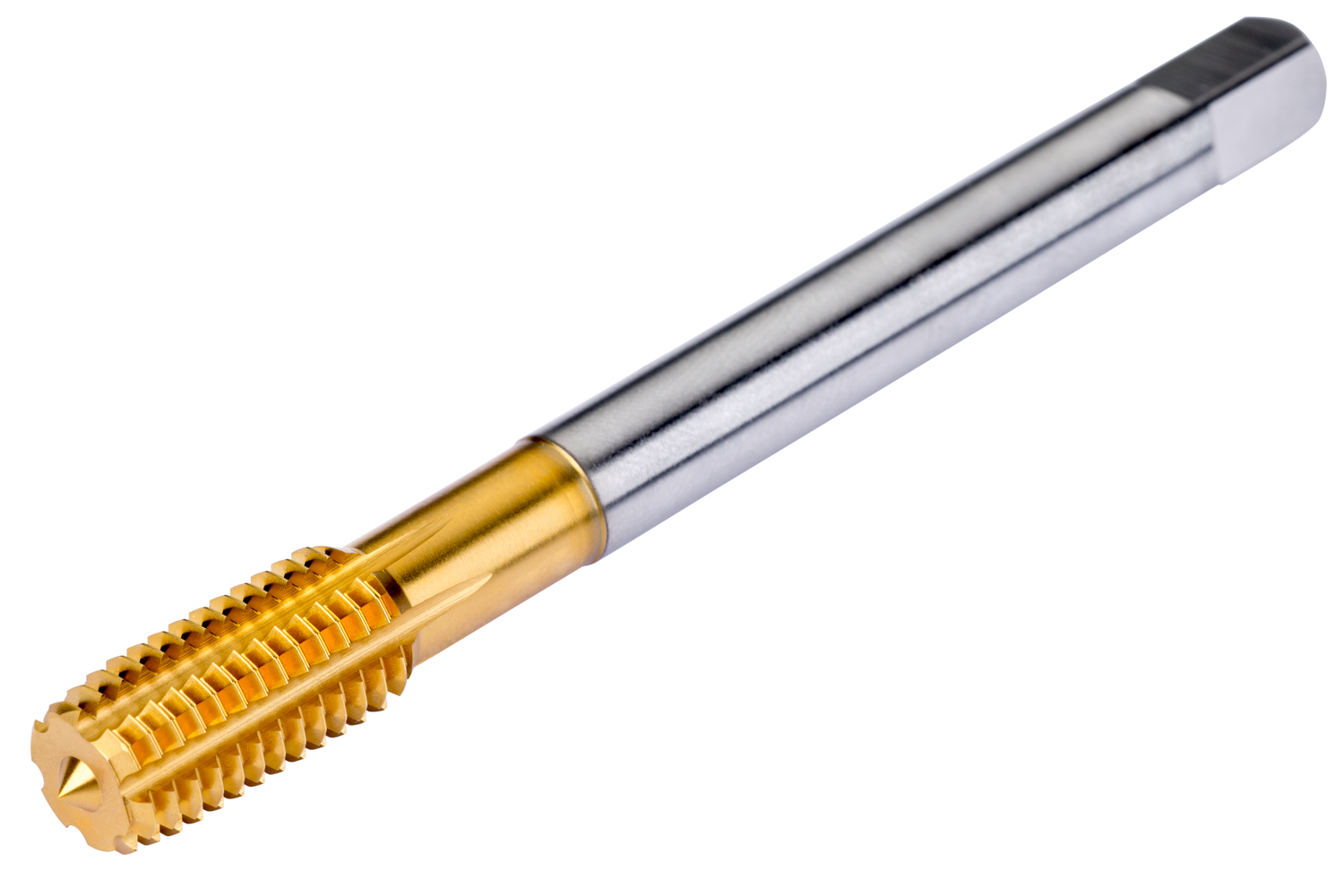

HSS-E SHARK Forming Tap with Lube Grooves, M, DIN/ANSI Standard, TiN Coated
Material ID: 8450752
Thread forming tap with lube grooves and chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M12 with 1.750 mm pitch and 6HX class of fit, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2748 inch square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminum.
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
