E894UNF1/2

E894UNF1/2

$156.67 CAD $282.00 CAD
Skip to product information
E894UNF1/2
E894UNF1/2

Dormer-Pramet

E894UNF1/2

Material ID: 8450744

$156.67 CAD $282.00 CAD

E894UNF1/2

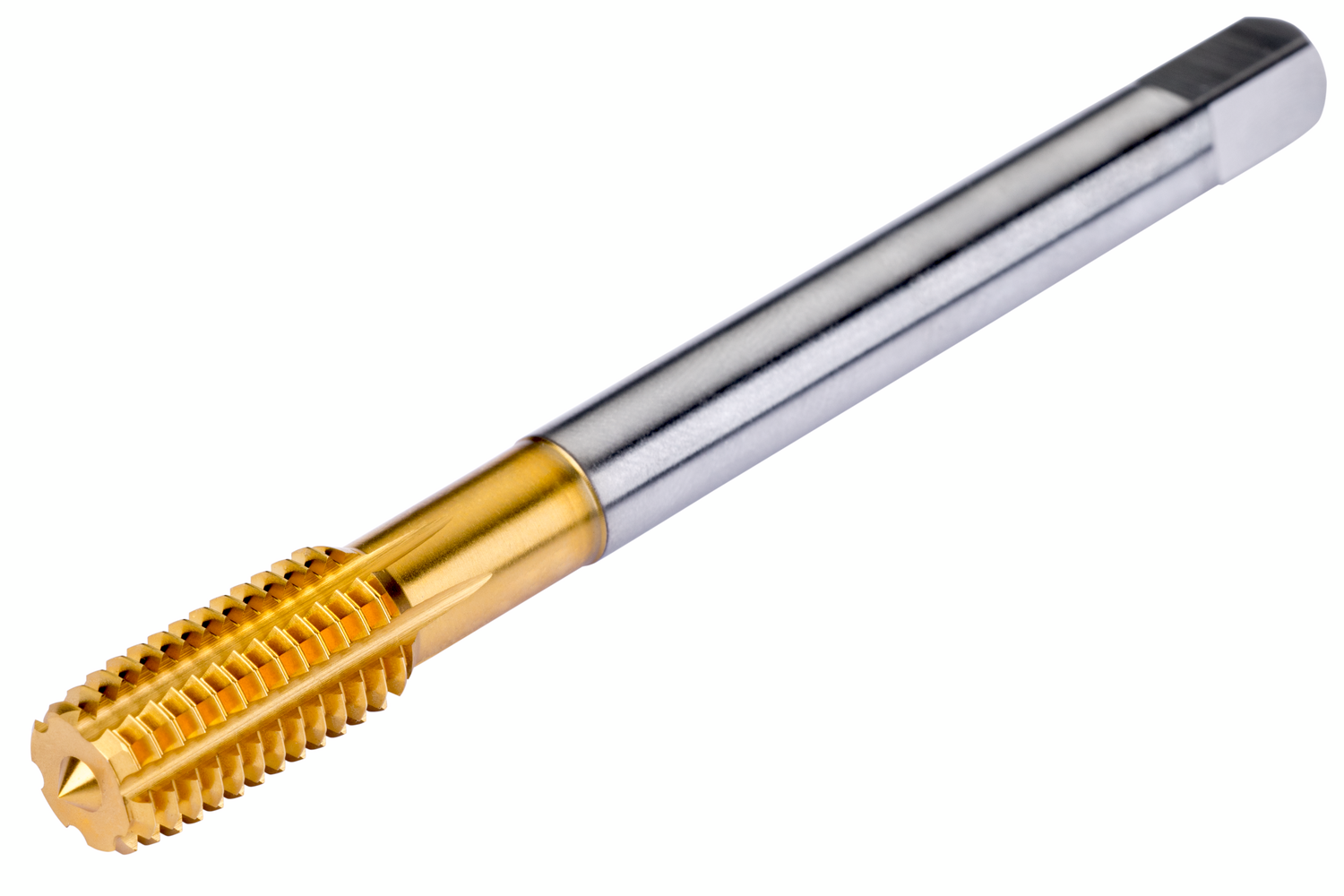

HSS-E SHARK Forming Tap with Lube Grooves, UNF, DIN/ANSI Standard, TiN Coated

Material ID: 8450744


Thread forming tap with lube grooves and chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 2BX class of fit, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2748 inch square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminum.

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8450744
