Dormer-Pramet
E894UNC3/4
Material ID: 8450737
Sale price
$296.11 CAD
Regular price
$533.00 CAD
E894UNC3/4

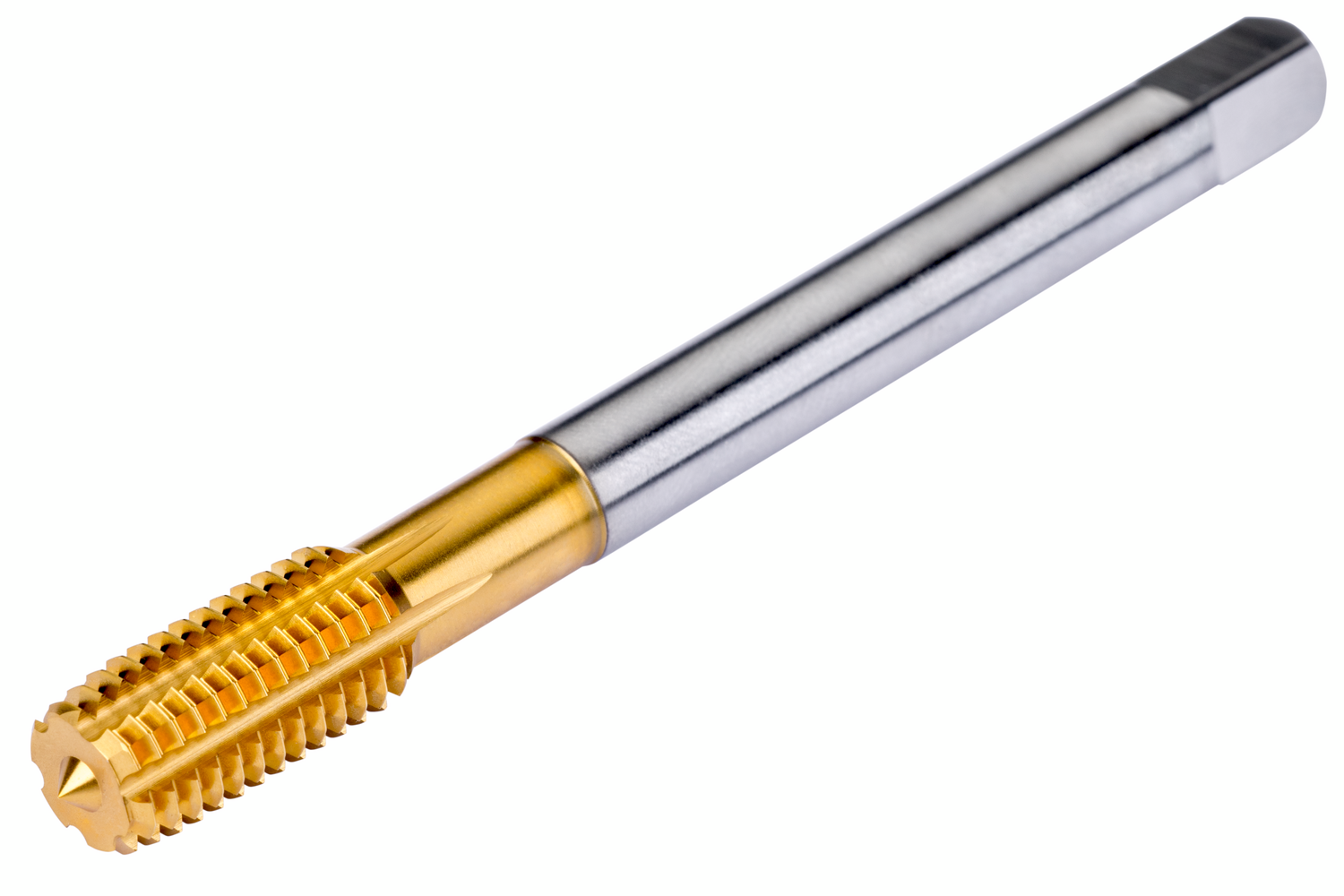

HSS-E SHARK Forming Tap with Lube Grooves, UNC, DIN/ANSI Standard, TiN Coated
Material ID: 8450737
Thread forming tap with lube grooves and chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 3/4 inch with 10 TPI and 2BX class of fit, dimensions according to DIN/ANSI standard with 0.590 inch shank and 0.4421 inch square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminum.
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
