Dormer-Pramet

300A08R-IS45ON06-C

Material ID: 8347798

$1,105.42 CAD $1,137.00 CAD

300A08R-IS45ON06-C

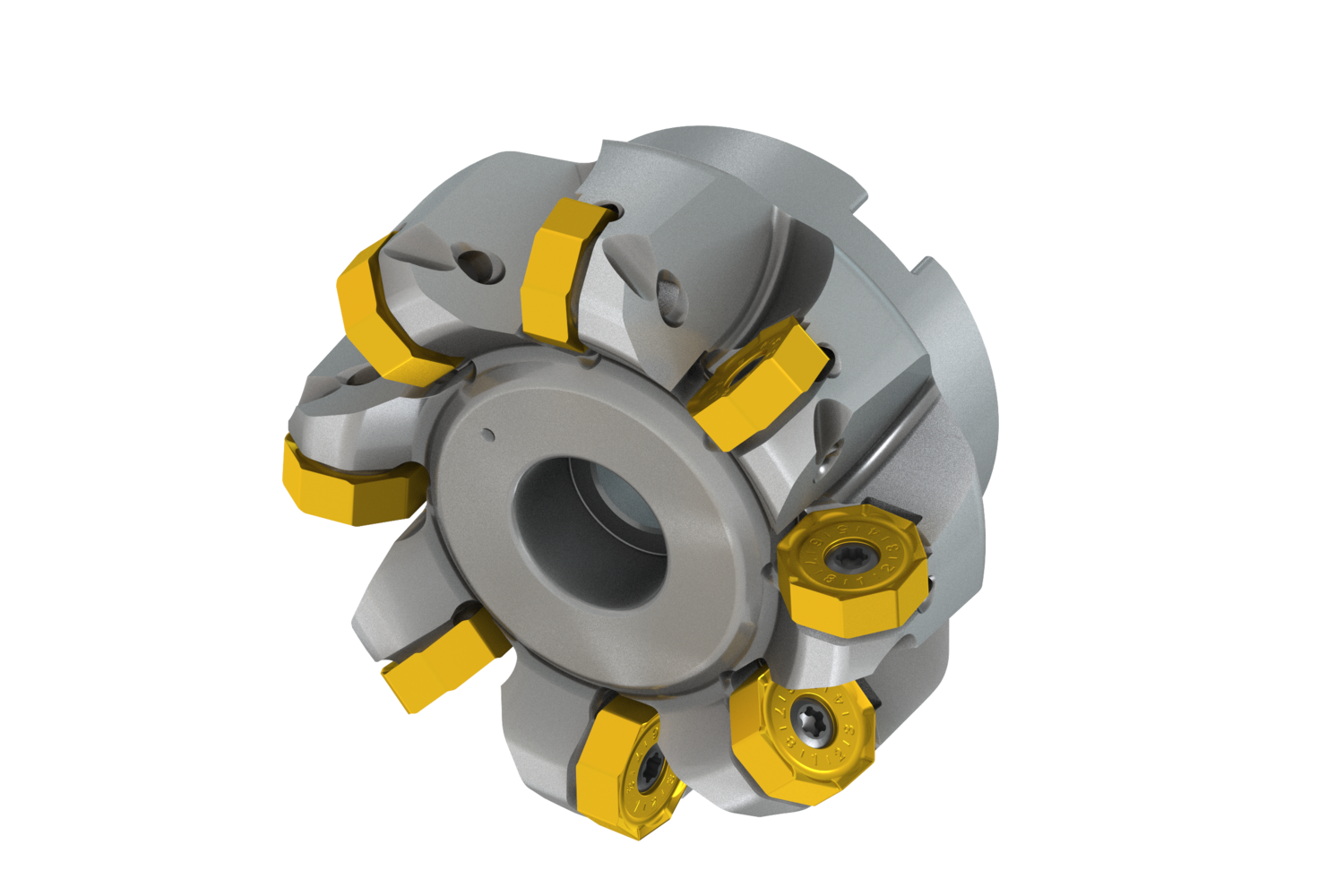

ECON ON06 43° Face Mill with Double Negative Design and Internal Coolant

Material ID: 8347798


Face mill with double negative geometry which utilises 8 of ON.. 06...., ON.. 06.. or SN.. 17.... double-sided inserts, cutting diameter 3.000 inch to maximum 3.425 inch with 43° approach angle and 1.000 inch connection bore according to DIN 8030-A, 1.969 inch functional and, through coolant for face milling and chamfering with a maximum depth of cut of ON.. 0,157 inch, SN.. 0,276 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8347798
