Dormer-Pramet

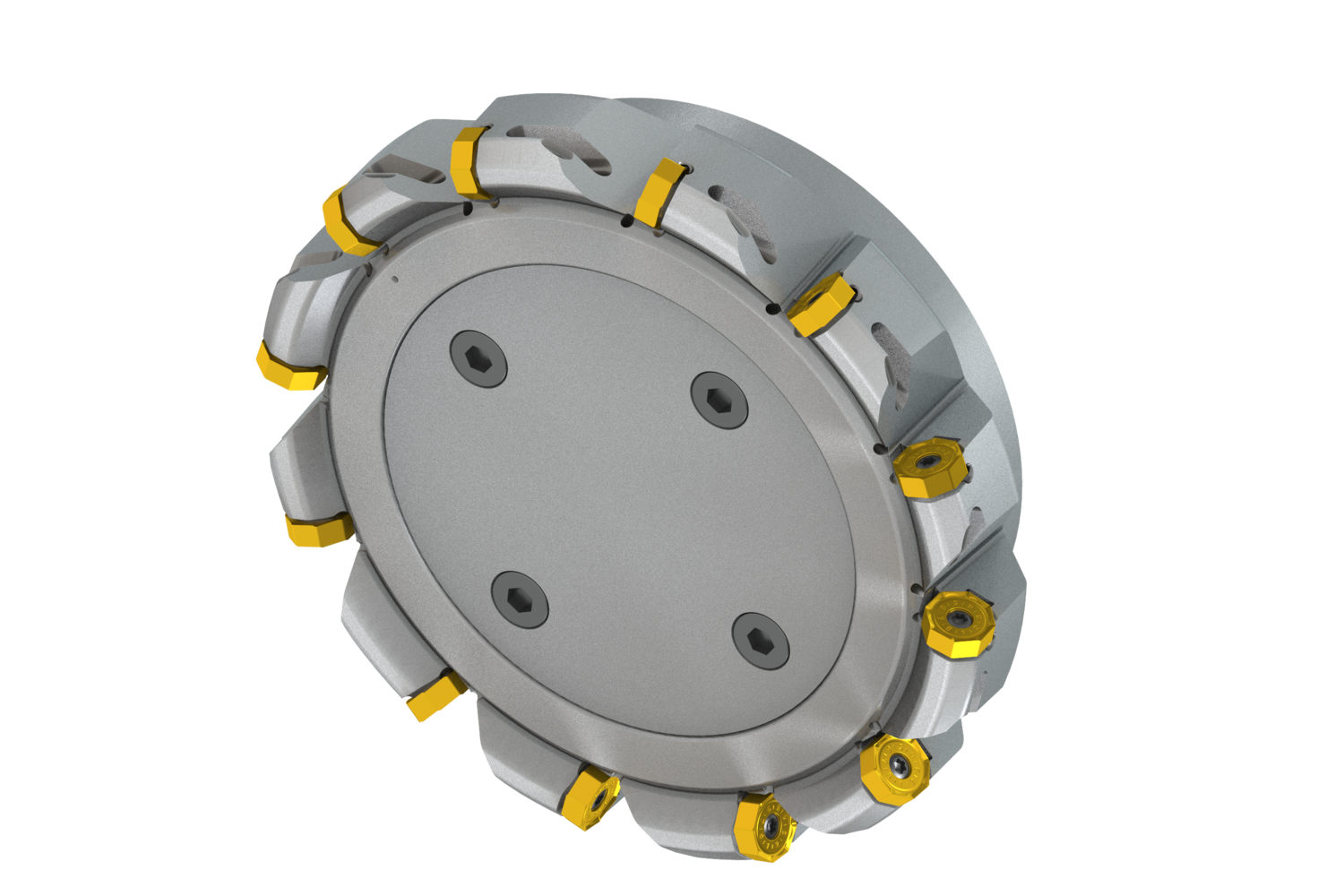

Face mill with double negative geometry which utilises 12 of ON.. 06...., ON.. 06.. or SN.. 17.... double-sided inserts, cutting diameter 200 mm to maximum 210.8 mm with 43° approach angle and 60 mm connection bore according to DIN 8030-C, 63 mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4 mm, SN.. 7 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8347769
