Dormer-Pramet

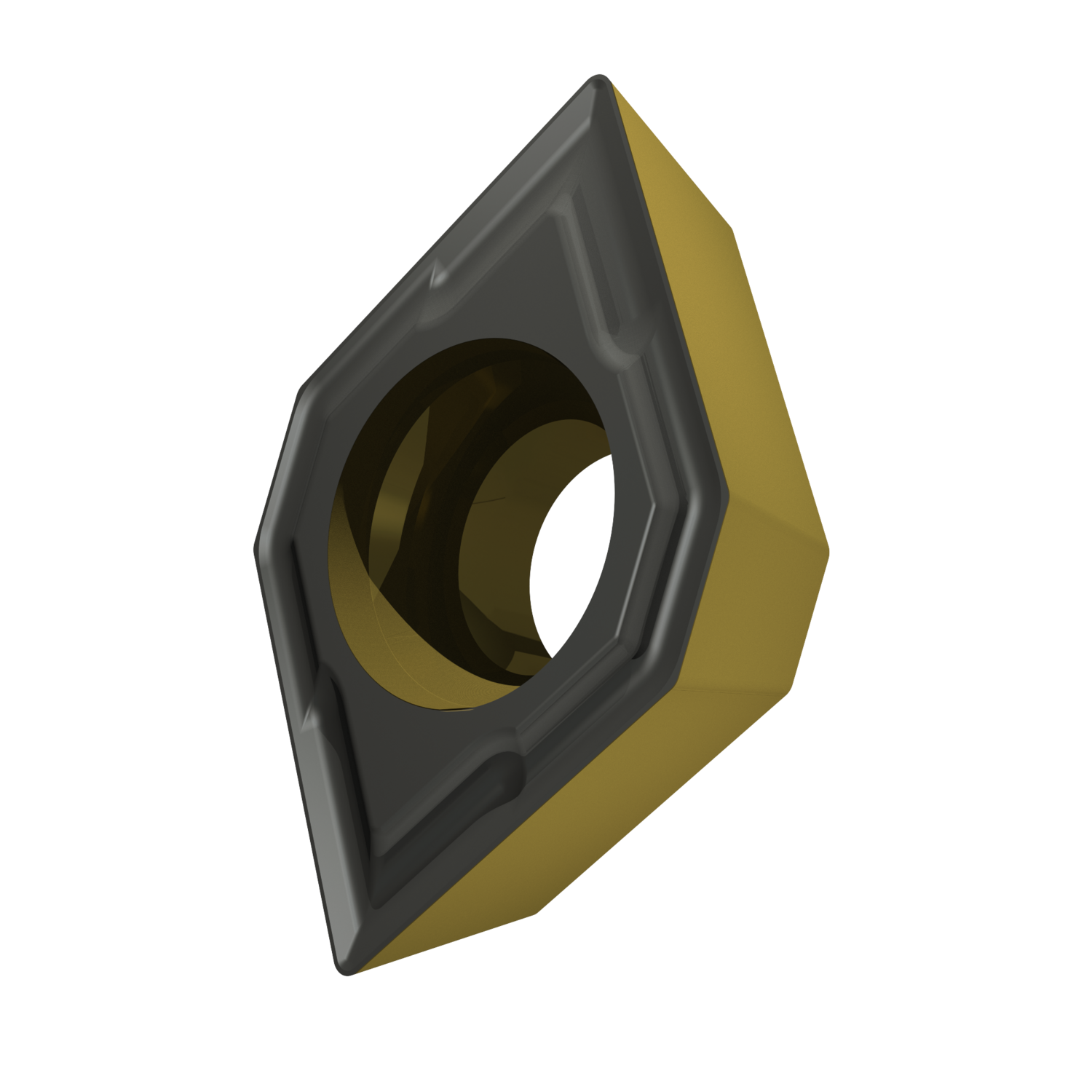

Single-sided positive turning insert, 75° rhomboid with 11° clearance, inscribed circle diameter of 5.56 mm, 2.38 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF2 with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide, for fine to medium machining

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8345947
