Dormer-Pramet

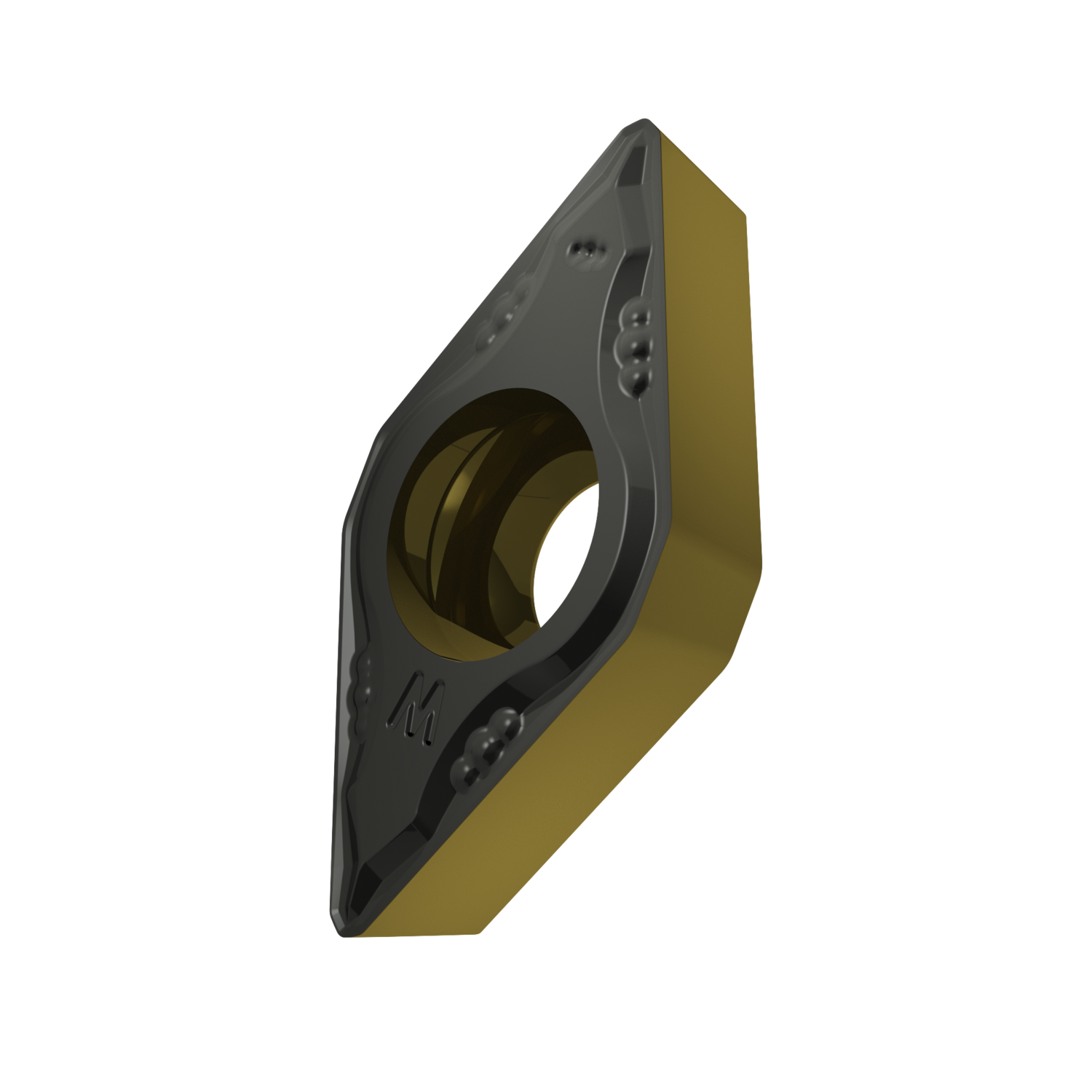

Special design positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with WIPER edge design, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to medium machining of steels

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8345943
