Dormer-Pramet

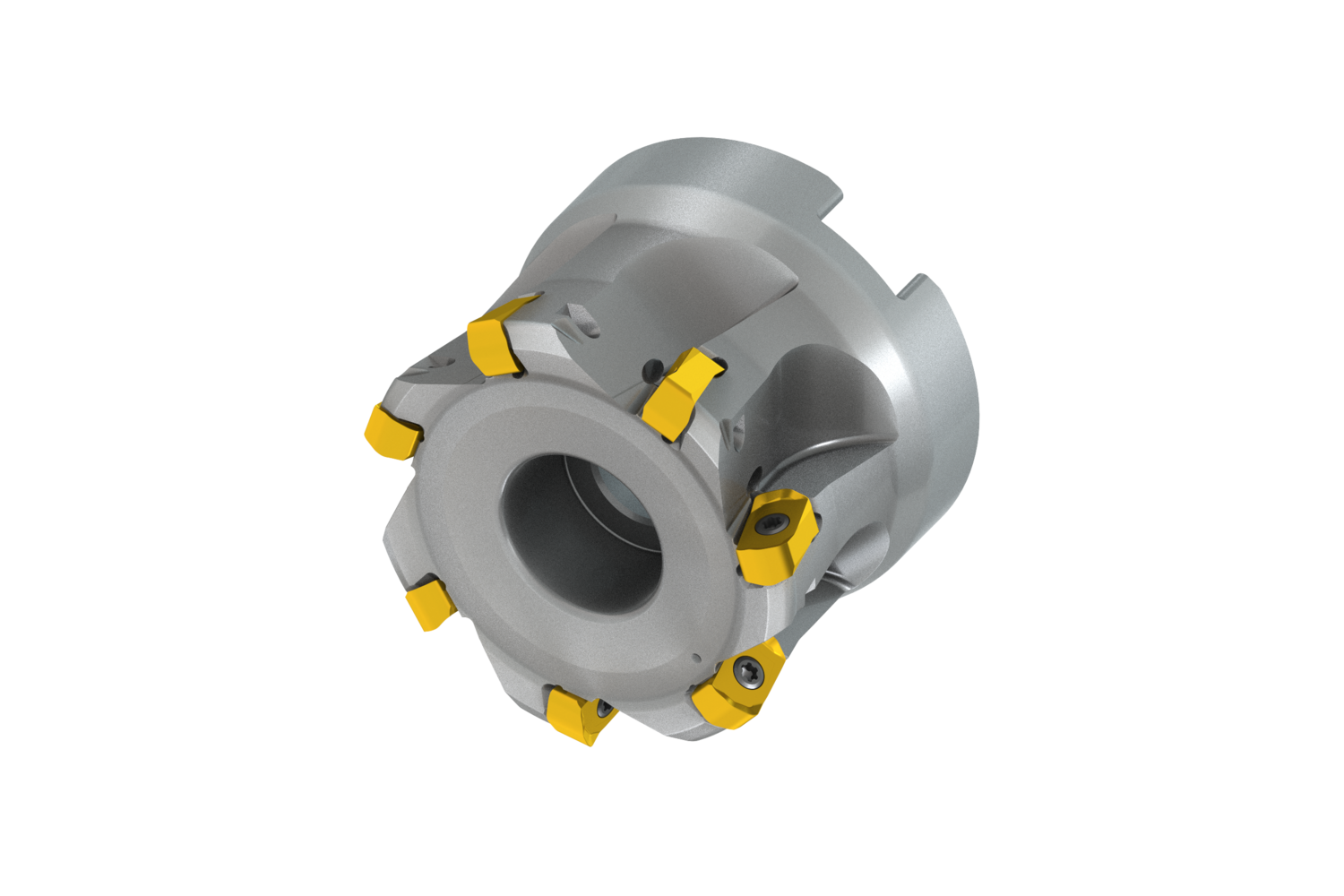

High feed cutter with double negative geometry which utilises 7 of BN.. 10.... inserts, cutting diameter 45 mm to maximum 50 mm with 29° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, plunge milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 1 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8258997
