Dormer-Pramet

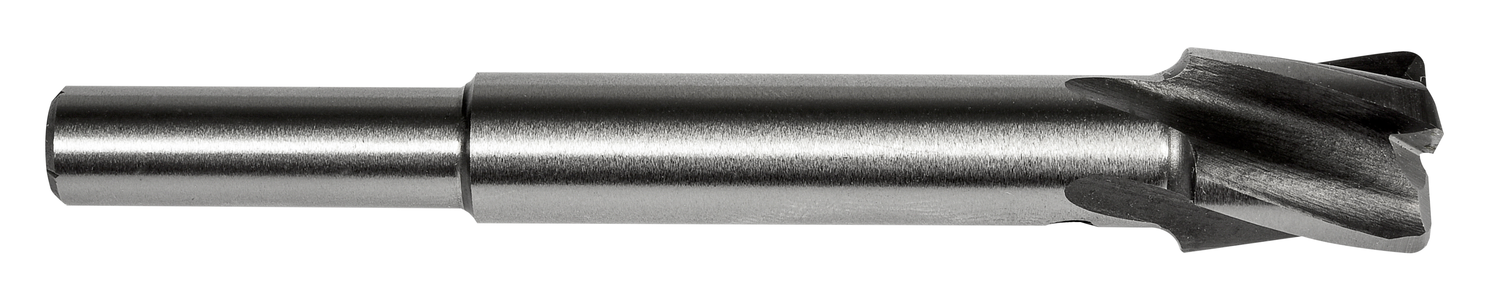

Interchangeable pilot type counterbore body with 4-flutes and corner radius, diameter 11/32 inch with an overall length of 2.3/8 inch and a flute length of 1/2 inch and 1/4 inch reduced straight shank, according to ANSI standard to produce a flat bottom seat for socket-head cap screws with the aid of a detachable pilot with a mounting diameter of 3/32 inch and a maximum pilot guide diameter of 9/32 inch, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8203309
