150N3R177W125-ISSD13F-C
150N3R177W125-ISSD13F-C

Dormer-Pramet

150N3R177W125-ISSD13F-C

Material ID: 8202814

$525.00 CAD $540.00 CAD

150N3R177W125-ISSD13F-C

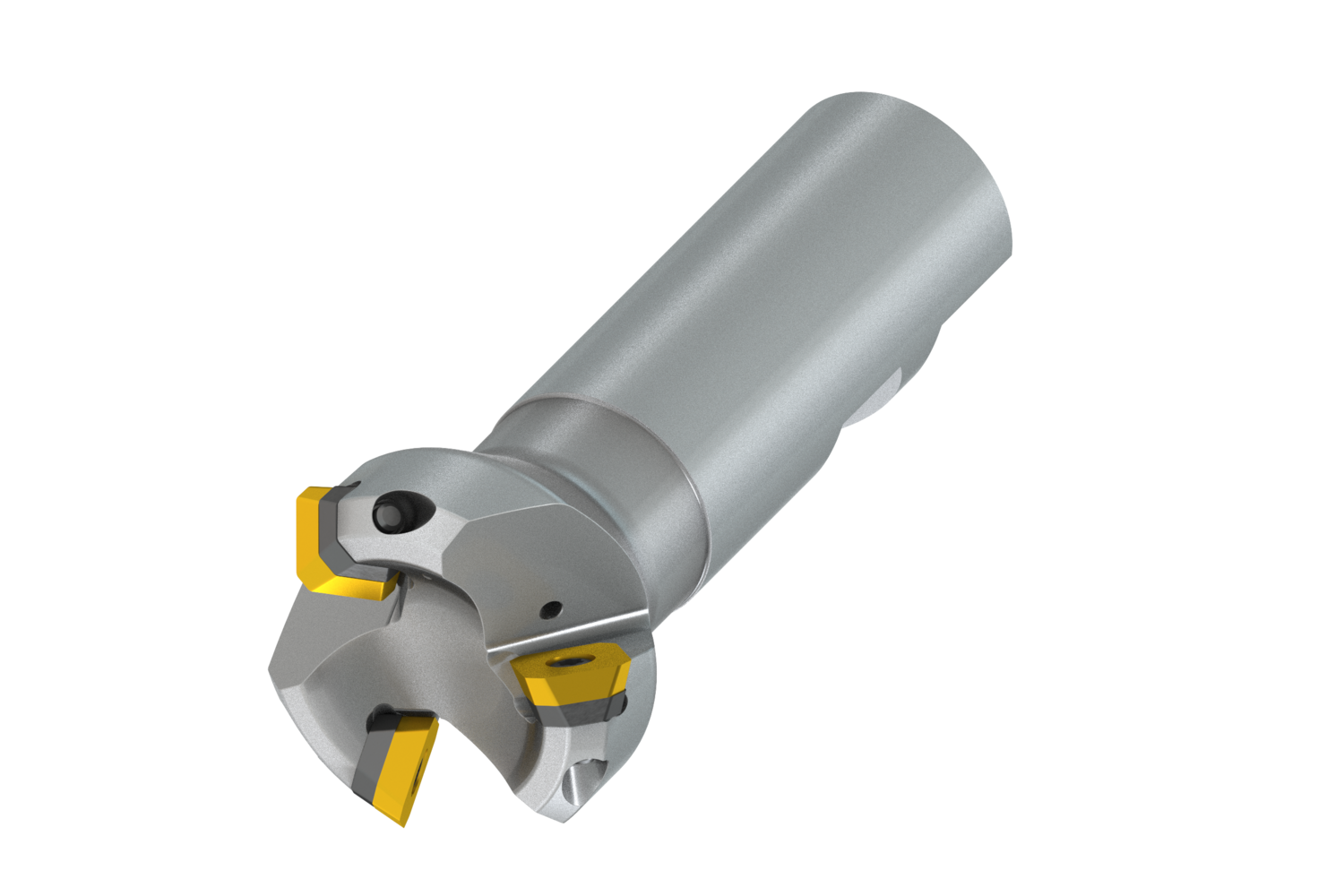

VER SD13 45° Face Mill with Positive Design and Internal Coolant

Material ID: 8202814


Face mill with positve/negative geometry which utilises 3 of SD.. 13...., SD.. 13.... or XD.. 13.... single-sided inserts, cutting diameter 1.500 inch to maximum 2.032 inch with 45° approach angle and 1.250 inch Weldon shank according to DIN 1835B, 1.772 inch usable and 4.724 inch overall length, through coolant for face milling and chamfering with a maximum depth of cut of 0.252 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8202814
