800C12R-IS45SD13F-C

800C12R-IS45SD13F-C

$1,705.28 CAD $1,754.00 CAD
Skip to product information
800C12R-IS45SD13F-C
800C12R-IS45SD13F-C

Dormer-Pramet

800C12R-IS45SD13F-C

Material ID: 8202810

$1,705.28 CAD $1,754.00 CAD

800C12R-IS45SD13F-C

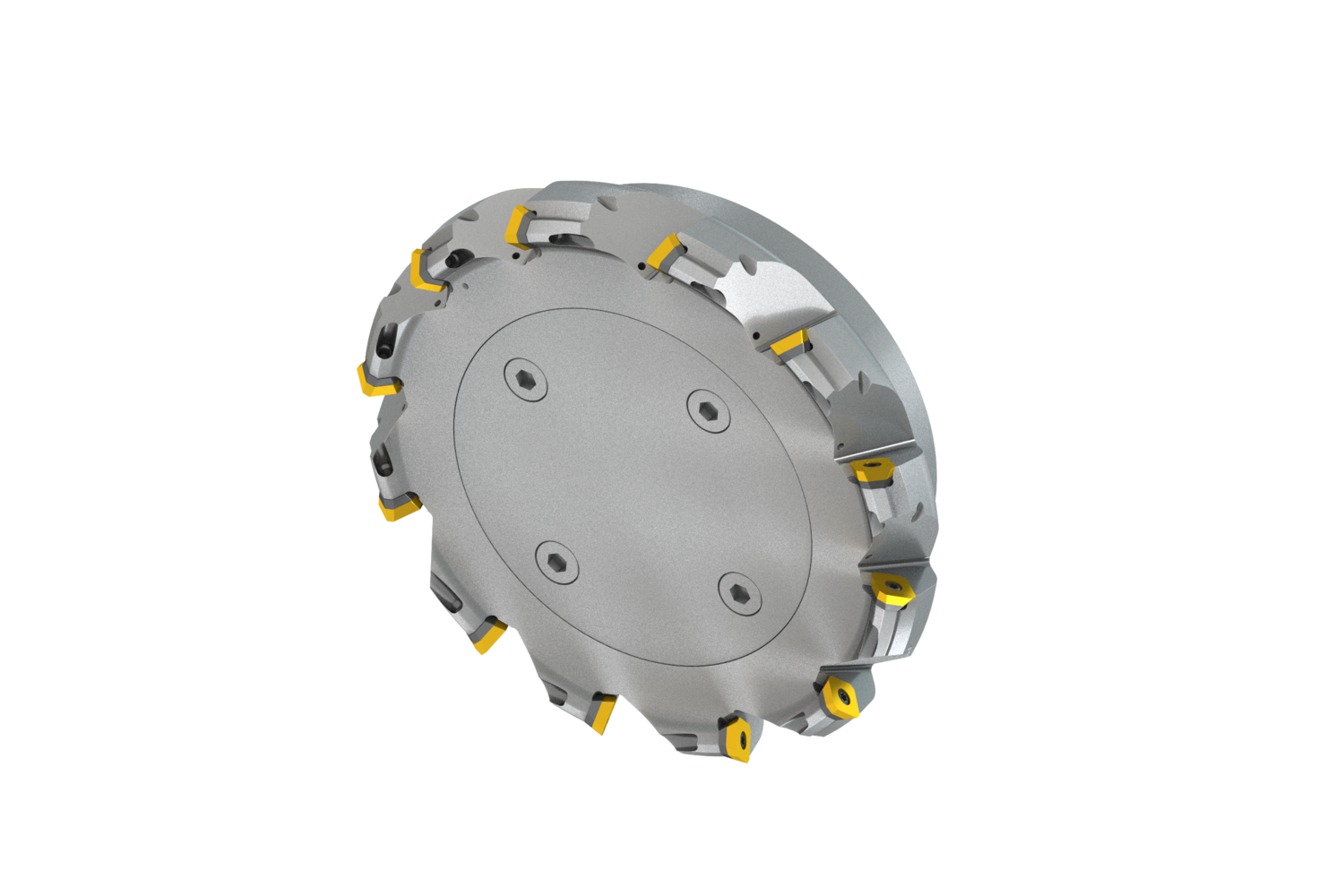

VER SD13 45° Face Mill with Positive Design and Internal Coolant

Material ID: 8202810


Face mill with positve/negative geometry which utilises 12 of SD.. 13...., SD.. 13.... or XD.. 13.... single-sided inserts, cutting diameter 8.000 inch to maximum 8.504 inch with 45° approach angle and 2.500 inch connection bore according to DIN 8030-C, 2.480 inch functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 0.252 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8202810
