Dormer-Pramet

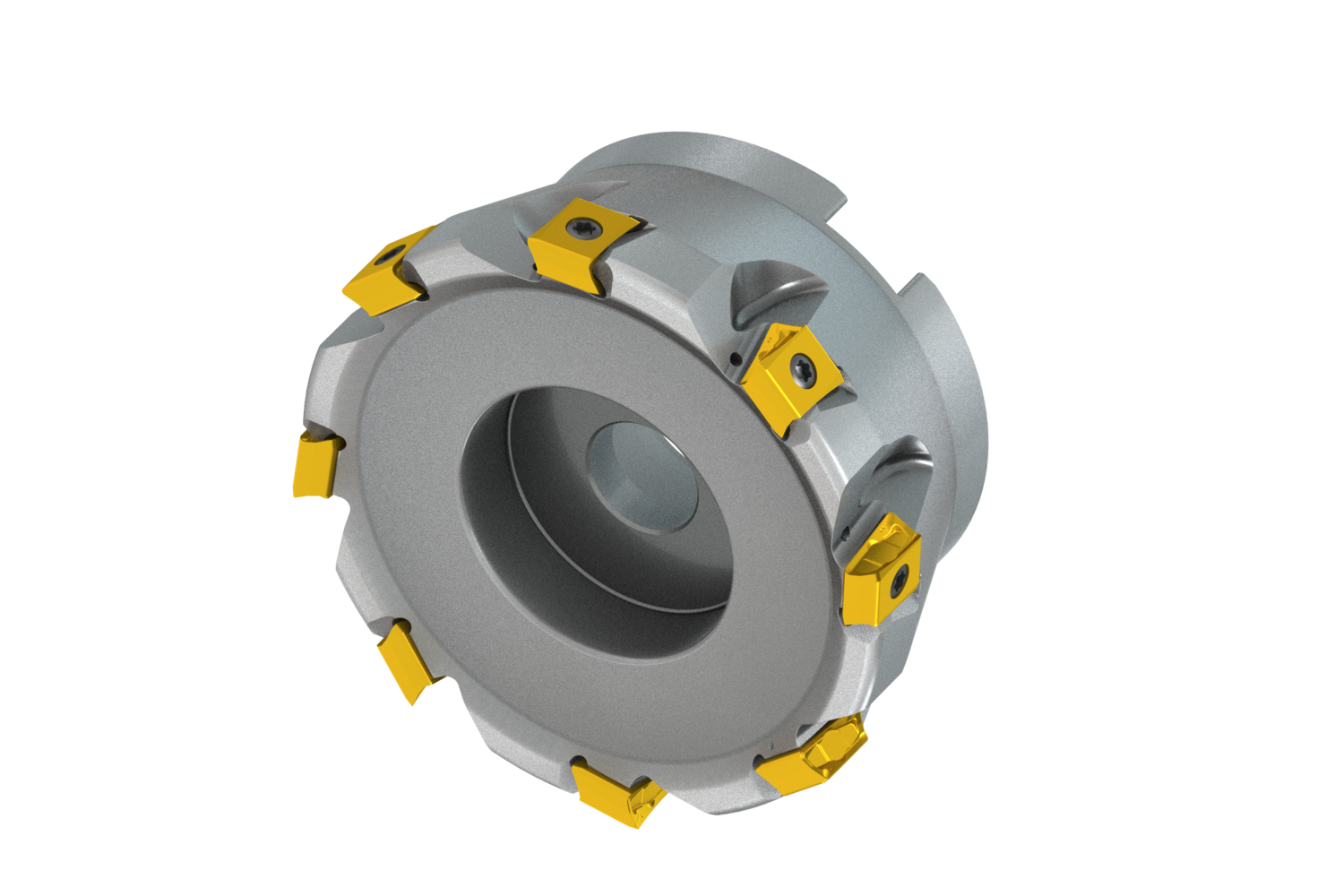

Shoulder mill with double negative geometry which utilises 8 of LN.. 12.... double-sided inserts, cutting diameter 100 mm with 90° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8185936
