Dormer-Pramet

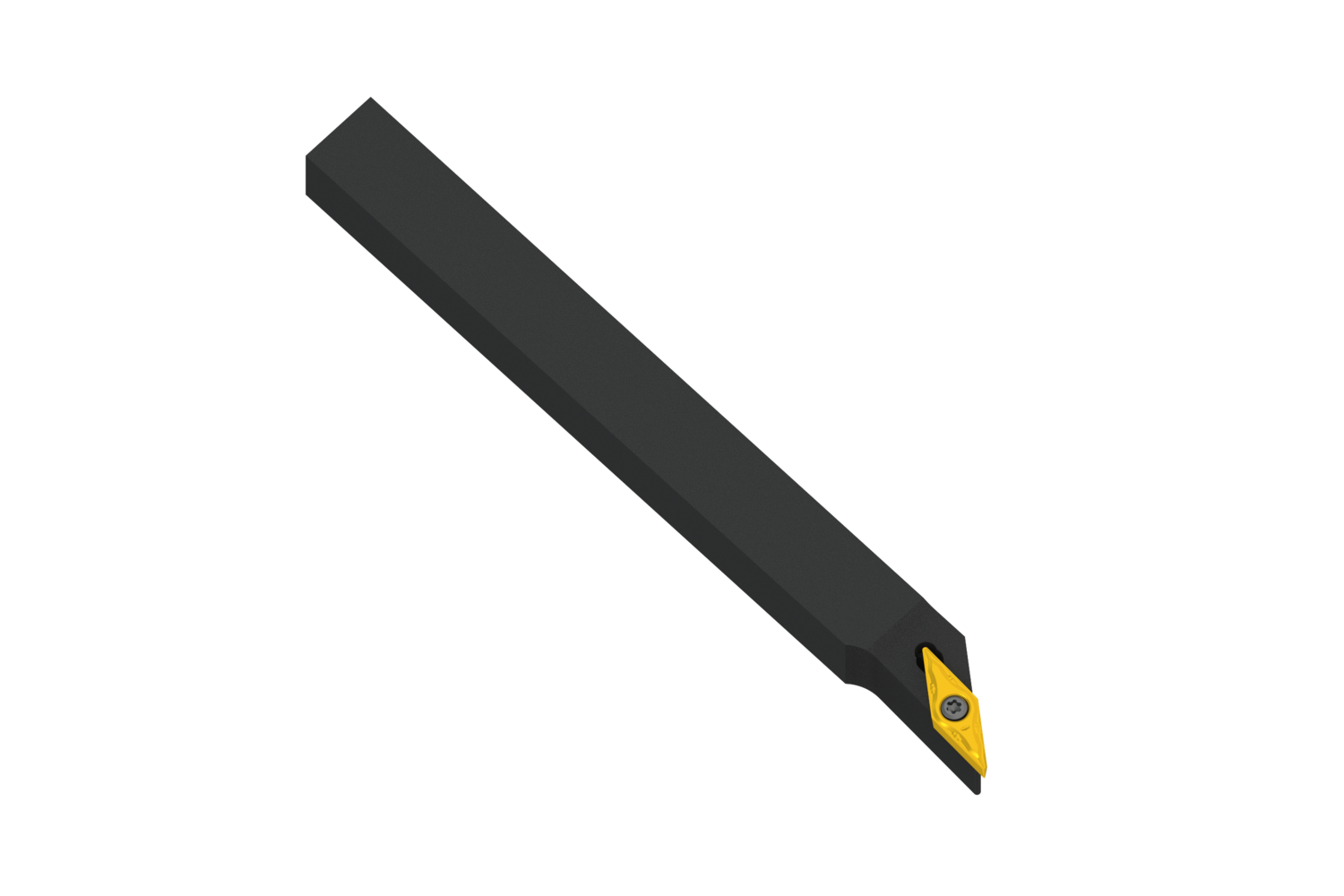

Screw clamp turning tool also compatible with sliding head machines for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35 mm, 3.18 mm thick (ISO designation VB.. 1103.., VC.. 1103.. ), left hand 93° side cutting with off-set shank, 12 mm tool height x 12 mm width x 125 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8181057
