Dormer-Pramet

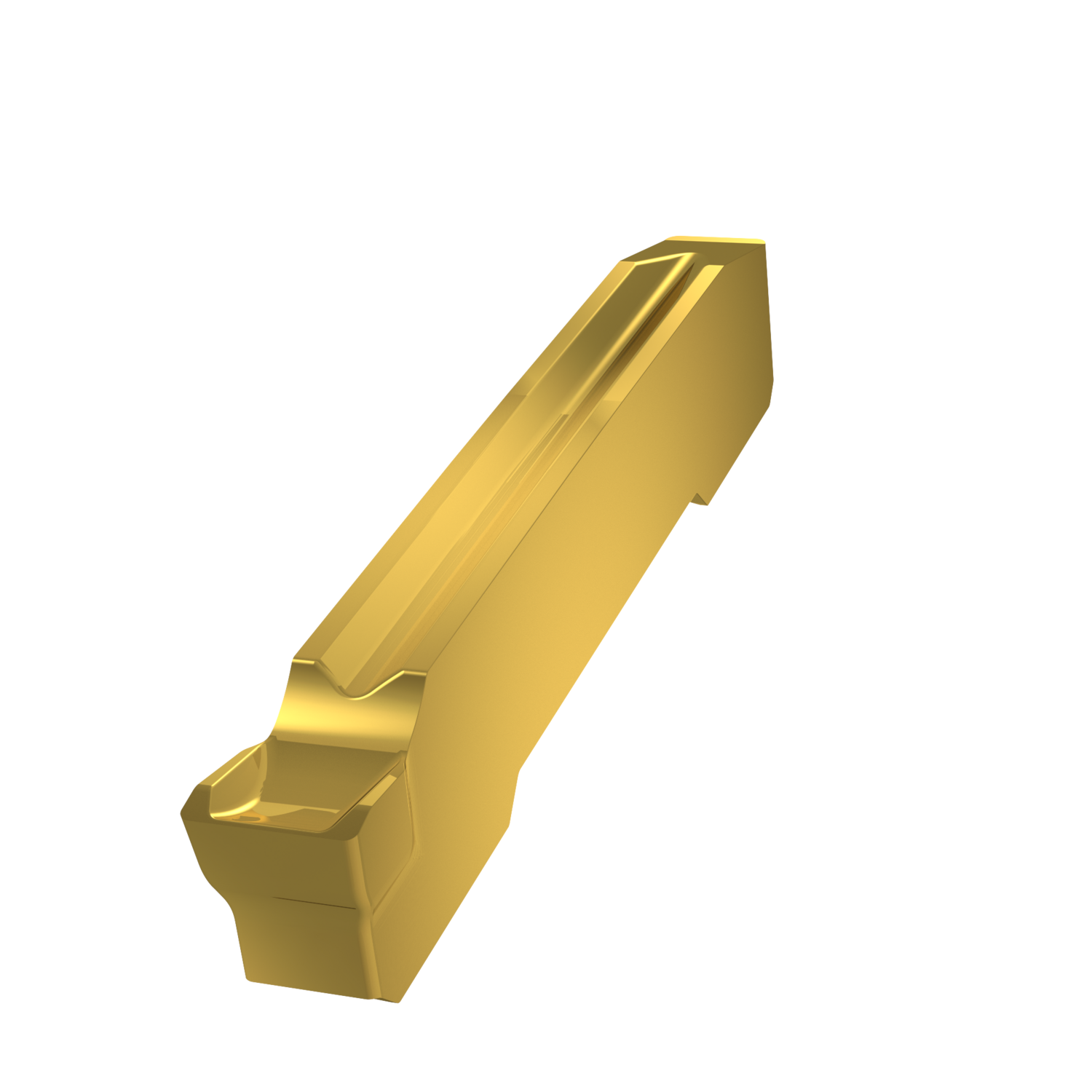

Single ended parting and grooving insert, 24.5 mm long with a 3 mm cutting width and 0.2 mm corner radii, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron. PR geometry with negative T-land on single sided insert, first choice for difficult deep grooving and parting-off, and continuous to interrupted cuts.

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8178696
