Dormer-Pramet

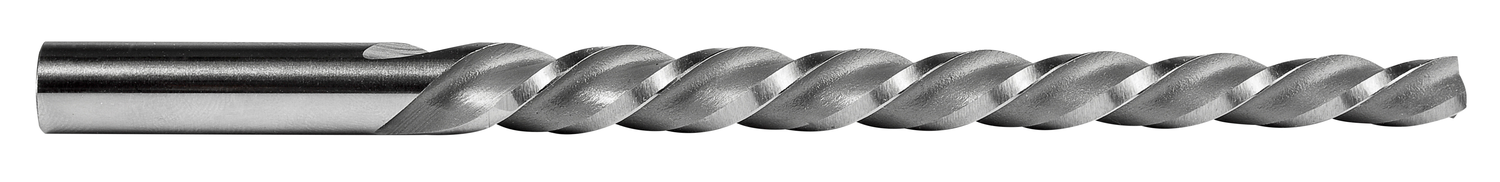

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank, large end diameter 0.0966 inch with an overall length of 2.3/16 inch, a flute length of 1.3/16 inch and 0.0719 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming tapered pin holes with a 1:48 taper into which standard number 5/0 taper pins (per ASA B5.20-1958) will fit, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8157382
