Dormer-Pramet

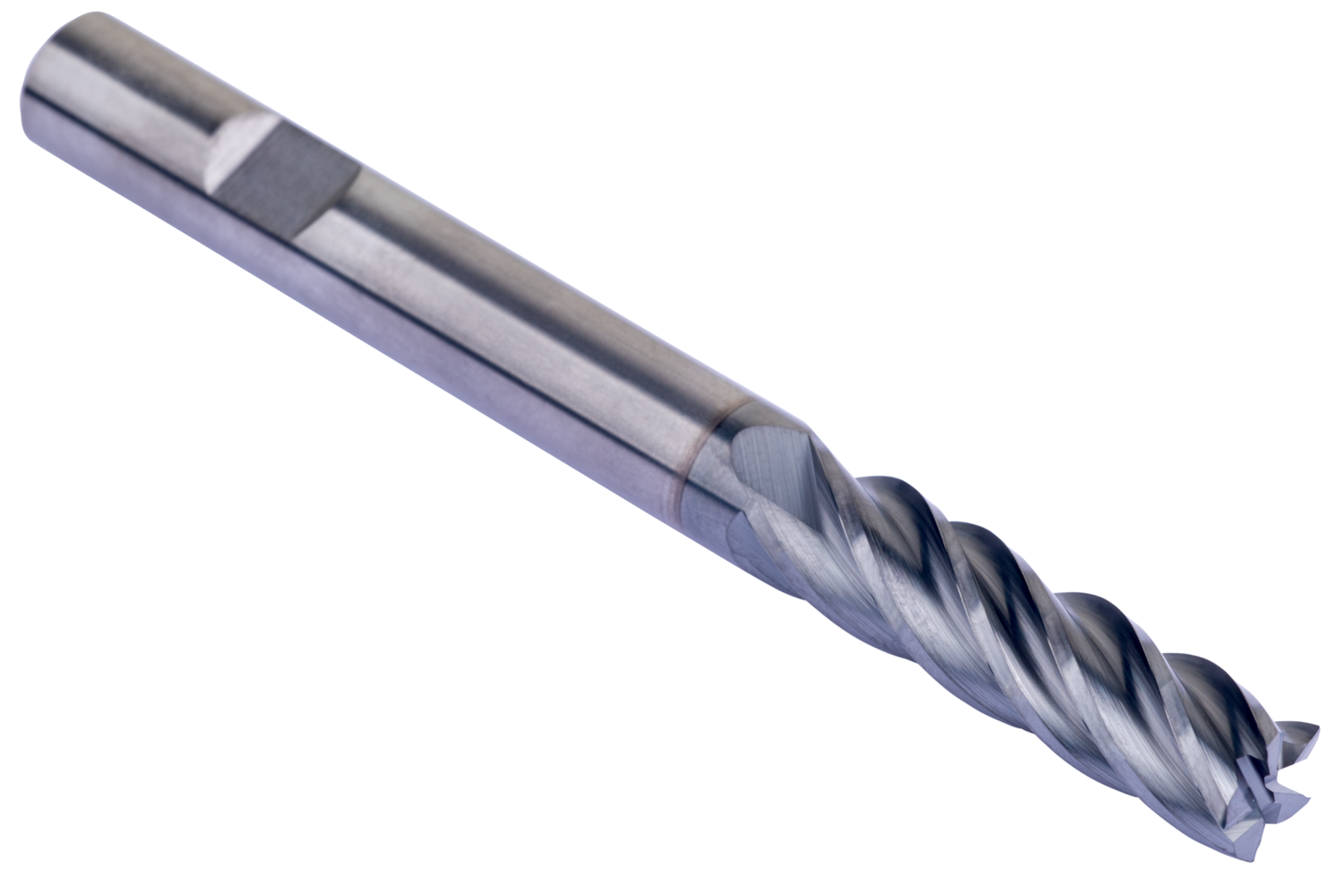

Long series Trochoidal end mill with 5 flutes, diameter 10 mm with 38 mm length of cut, 100 mm overall length and 0.2 mm corner radii, according to Dormer Pramet standard with a 10 mm Weldon shank, solid carbide with AlCrN coating, unequal helix and 10° rake angle for shoulder milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8030390
