Dormer-Pramet

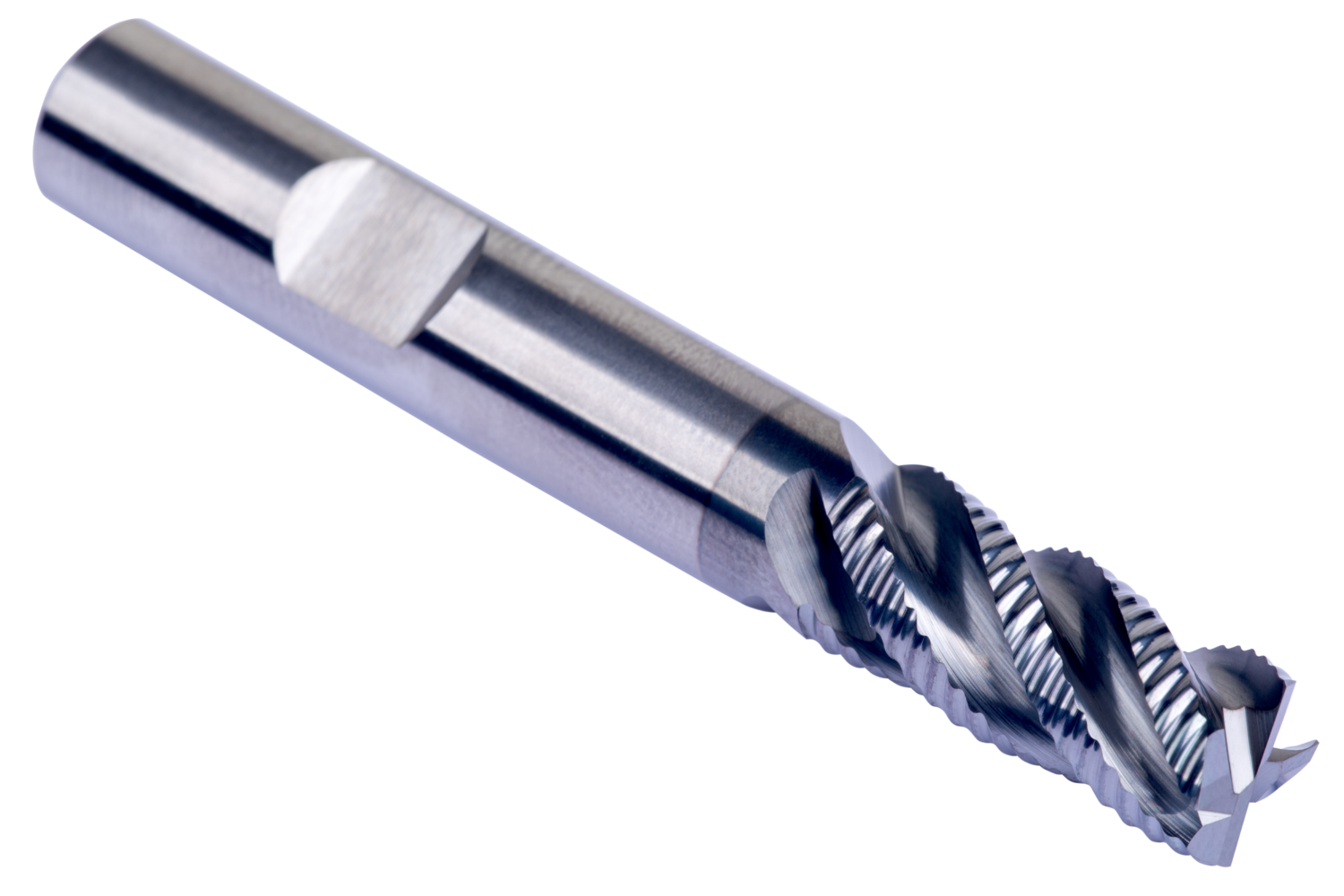

Short series Roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 38 mm length of cut, 100 mm overall length and 0.3 mm 45° chamfered corner edges, according to Dormer Pramet standard with a 18 mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling and slot milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8030368
