Dormer-Pramet

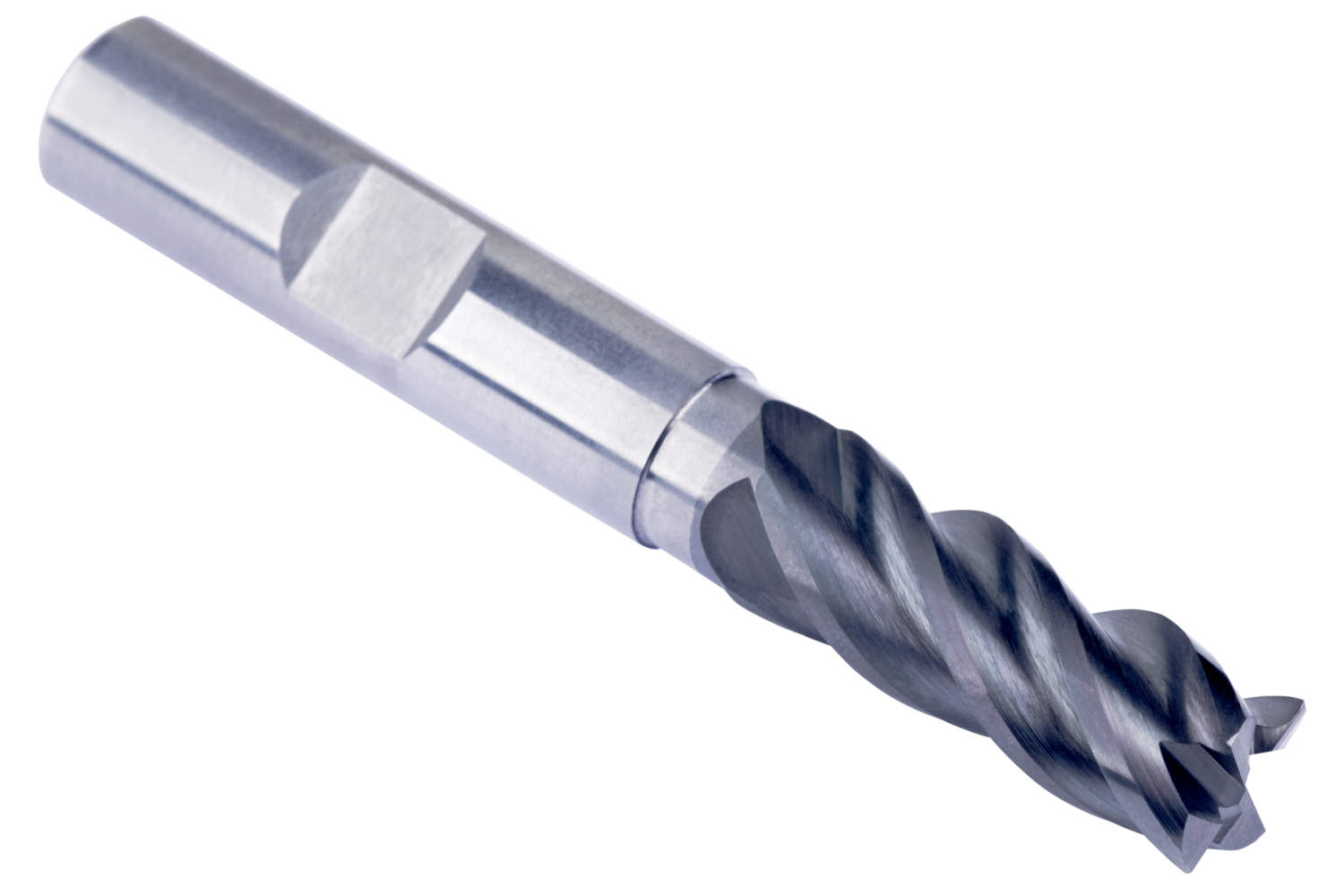

Regular length End mill with 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length, 42 mm reach with neck relief and 0.2 mm corner radii, according to Dormer Pramet standard with a 18 mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 7° rake angle for shoulder milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8030360
