Dormer-Pramet

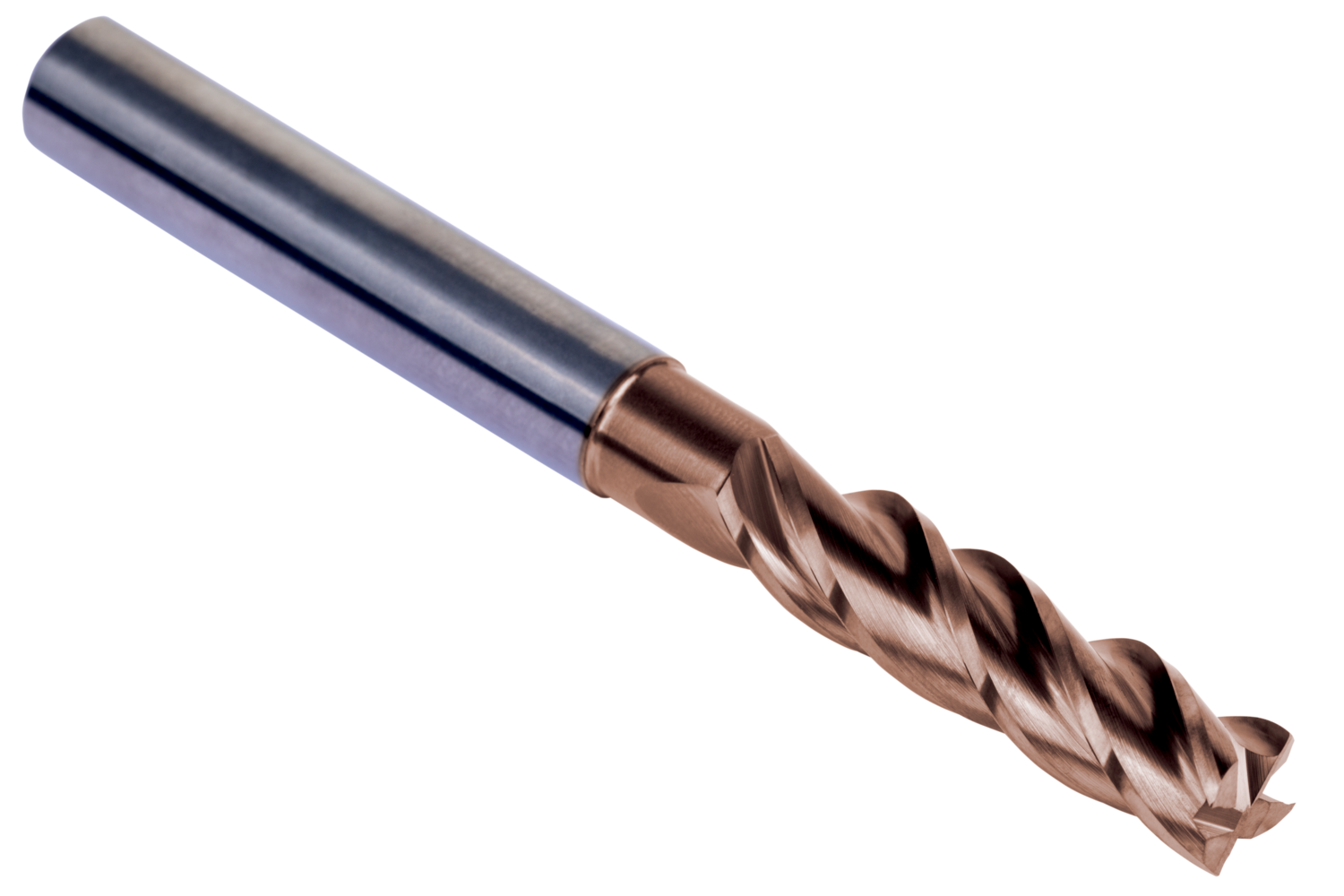

Long series End mill with 4 flutes, diameter 12 mm with 45 mm length of cut, 100 mm overall length, 55 mm reach with neck relief and 0.3 mm corner radii, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with TiSiN coating, unequal helix and 10° rake angle for shoulder milling and plunging in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8030348
