Dormer-Pramet

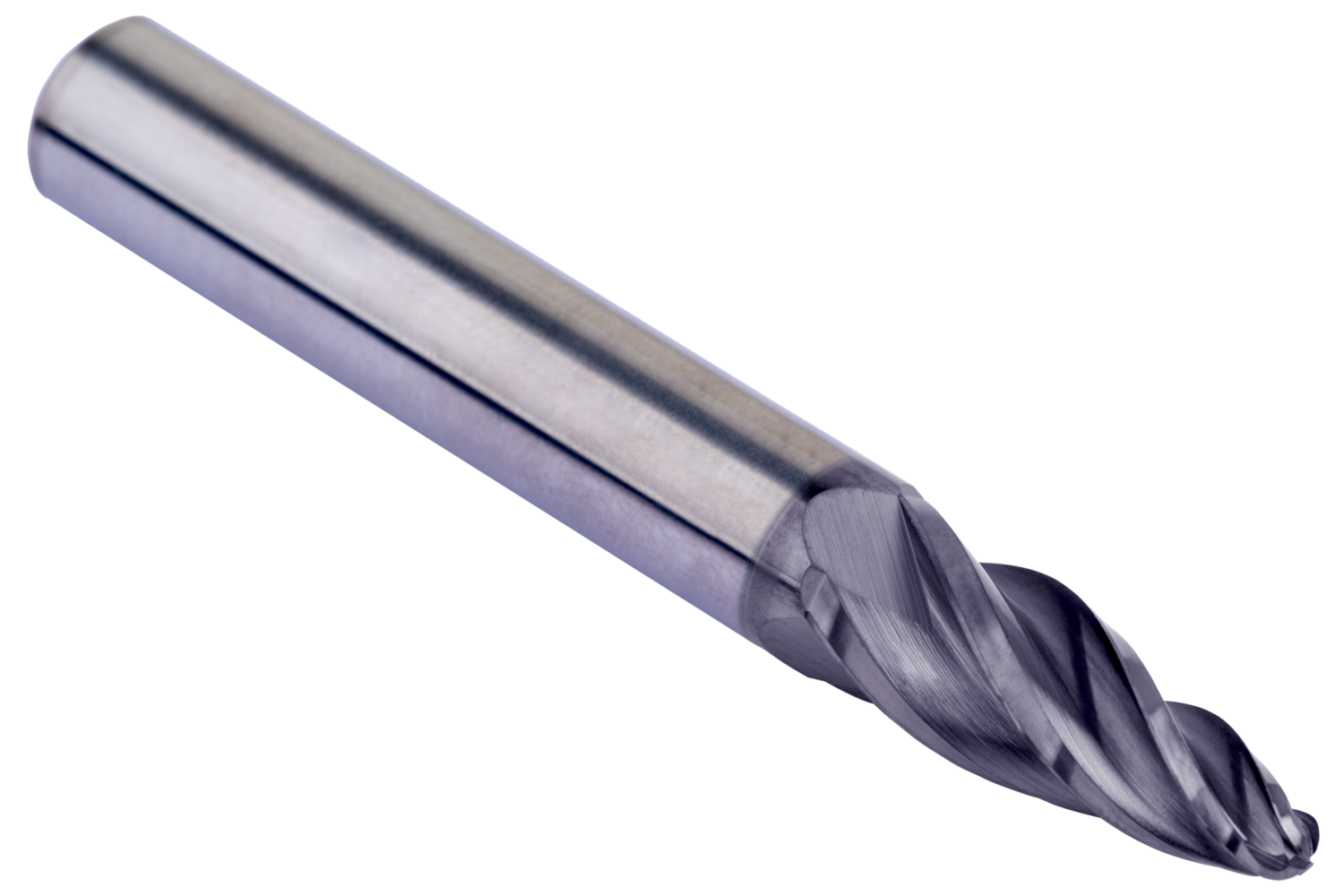

Regular length Barrel shape end mill with 4 flutes, diameter 12 mm with 28 mm length of cut, 83 mm overall length, 2 mm full profile radius and 80 mm tangential radius, according to Dormer Pramet standard with a 12 mm plain shank, solid carbide with AlCrN coating, 30° helix and 8° rake angle for copy milling and turn milling in steel and cast steel or cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8030341
