Dormer-Pramet

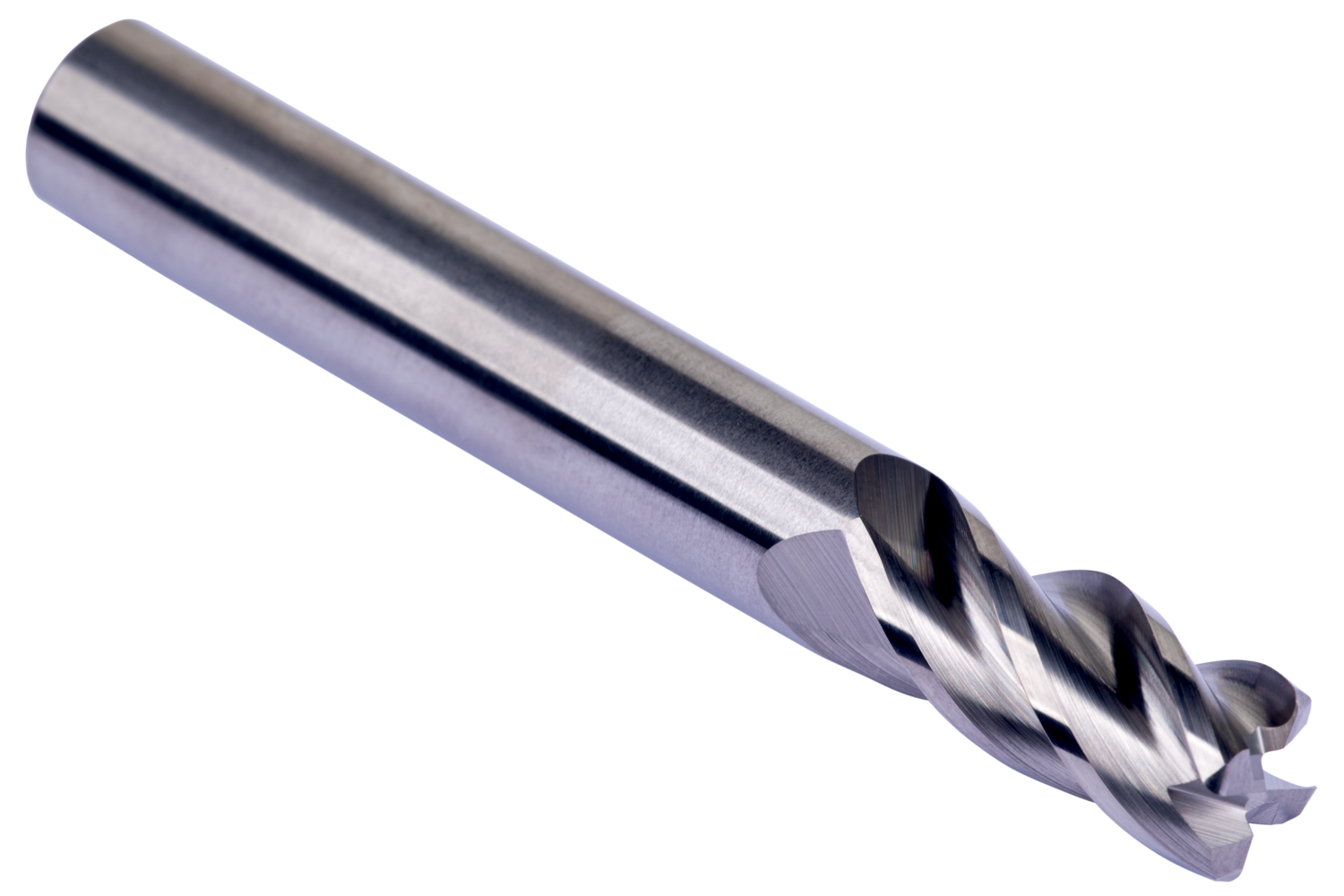

Short series Corner radius end mill with 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 0.5 mm corner radii, according to Dormer Pramet standard with a 10 mm plain shank, solid carbide with bright finish, 40° helix and 10° rake angle for shoulder milling, plunging, ramping and helical milling in non-ferrous metals

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8030323
