Dormer-Pramet

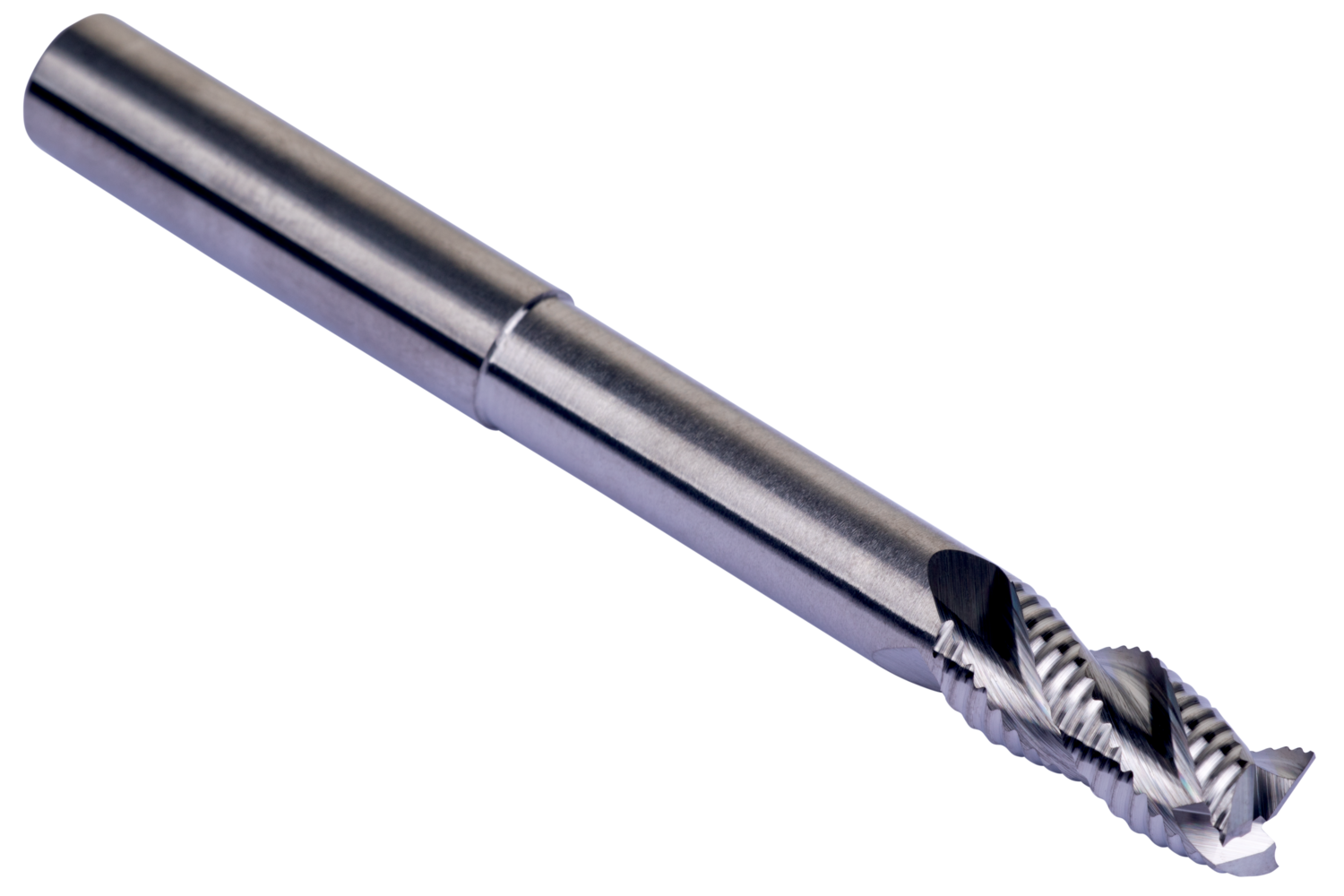

Short series Roughing end mill with 3 flutes, diameter 8 mm with 20 mm length of cut, 75 mm overall length, 40 mm reach with neck relief and 0.1 mm corner radii, according to Dormer Pramet standard with a 8 mm plain shank, solid carbide with bright finish, 40° helix and 15° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Minimum Order Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8030307
