Dormer-Pramet

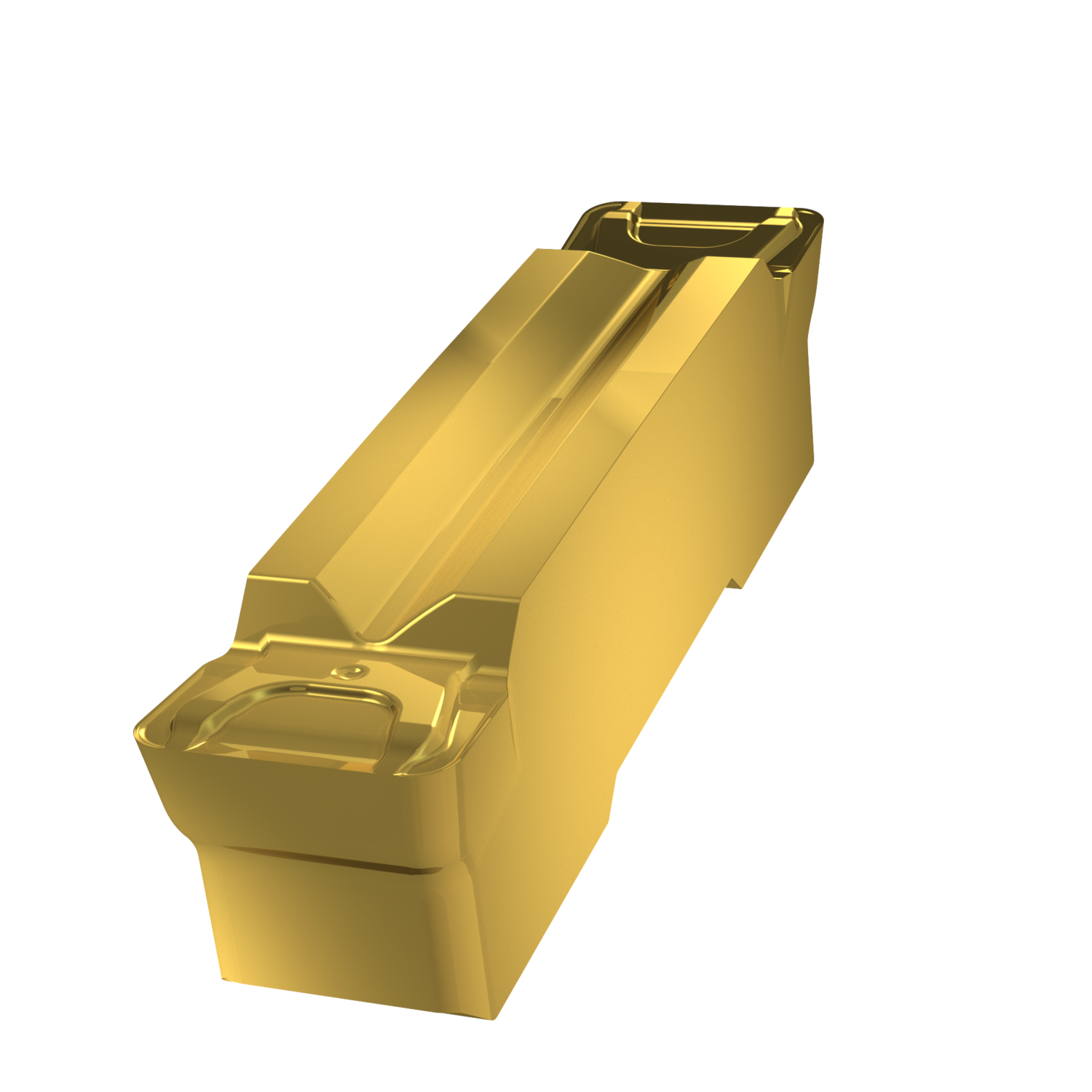

Double ended parting and grooving insert, 25 mm long with a 6 mm cutting width and 0.8 mm corner radii, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron. GM versatile geometry for grooving and longitudinal turning, and continuous to interrupted cuts.

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/8023034
