C5-SVQBL-18090-16
Turning Toolholder Polygon Shank Coupling ISO S - Internal
Material ID: 7809898

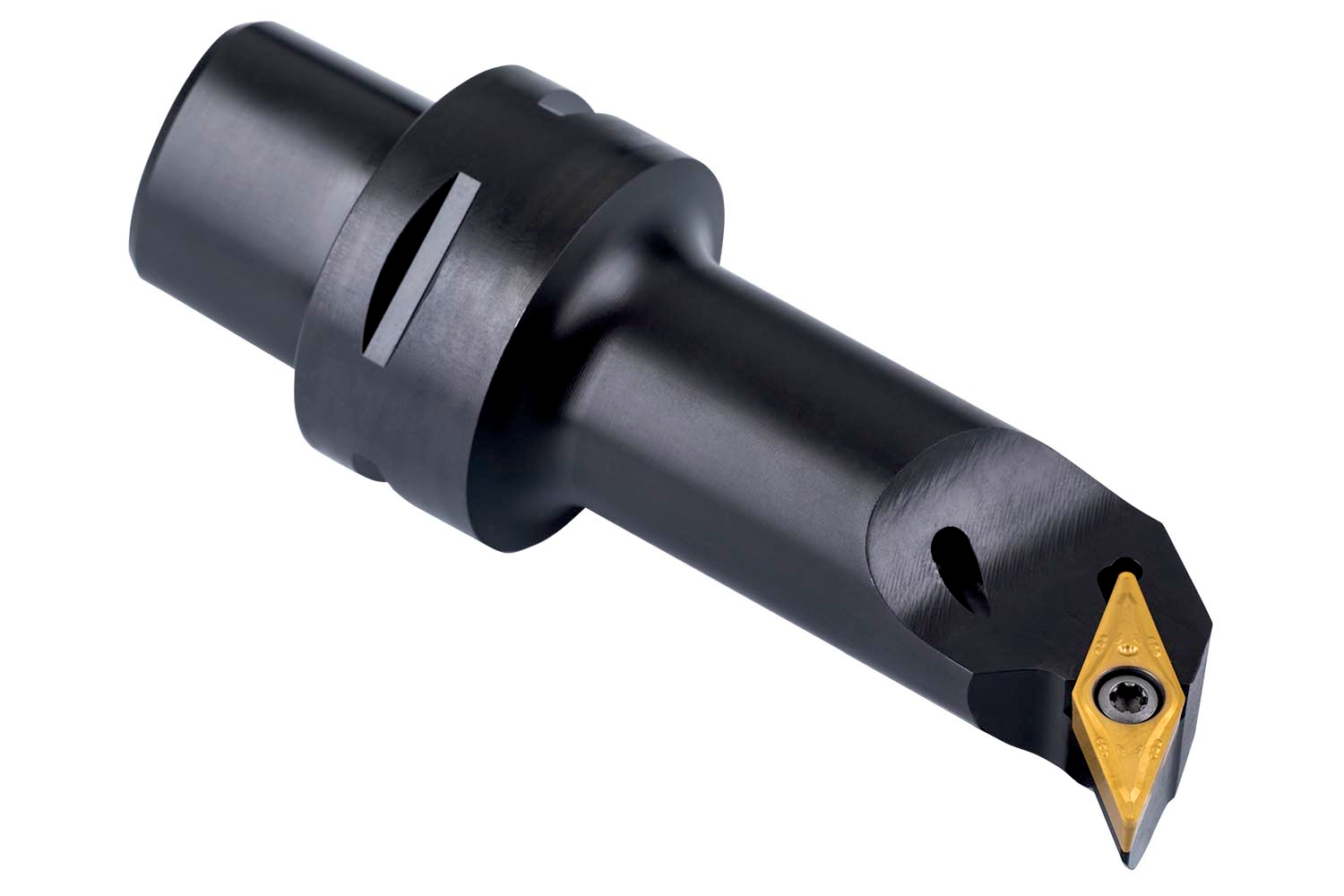

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 107°30' end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 18 mm funtional width and 90 mm protruding length for single and multi-directional copy boring
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
