Dormer-Pramet
C4-SVQBR-18090-16
Material ID: 7809897
Sale price
$618.33 CAD
Regular price
$636.00 CAD
C4-SVQBR-18090-16

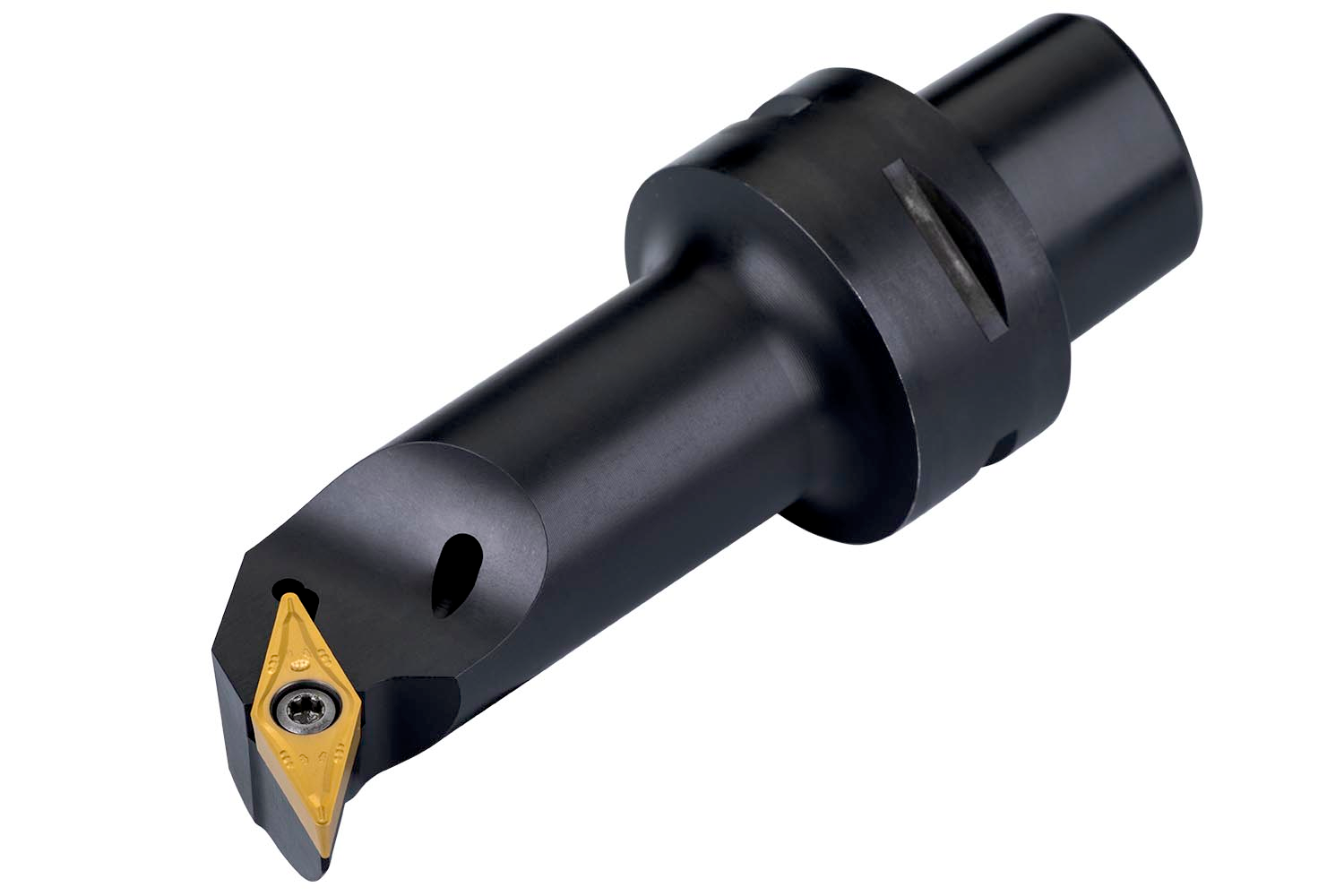

Turning Toolholder Polygon Shank Coupling ISO S - Internal
Material ID: 7809897
Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), right hand 107°30' end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 18 mm funtional width and 90 mm protruding length for single and multi-directional copy boring
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
