Dormer-Pramet

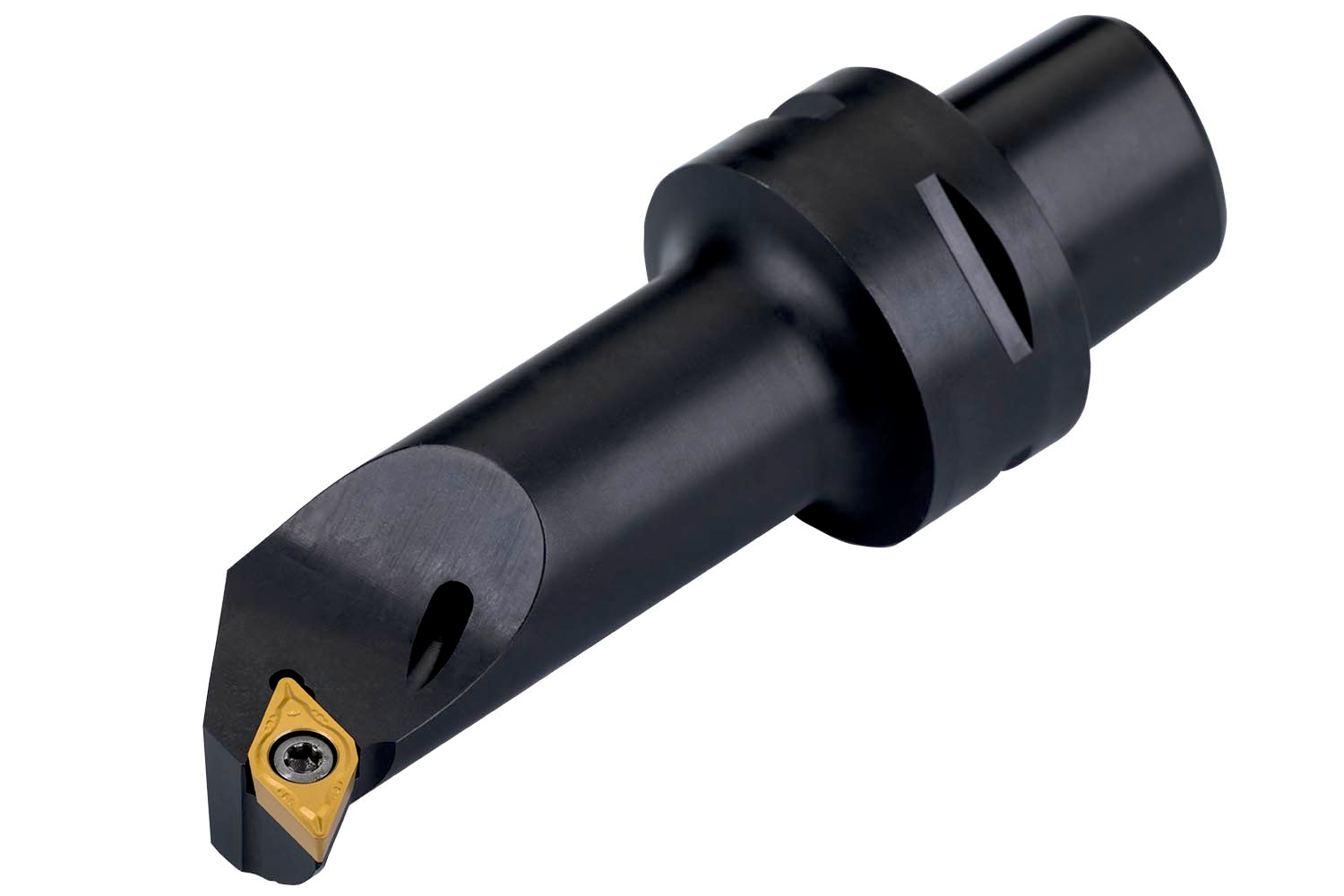

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation DC.. 11T3.. ), right hand 93° end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 17 mm funtional width and 90 mm protruding length for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7809892
