Dormer-Pramet

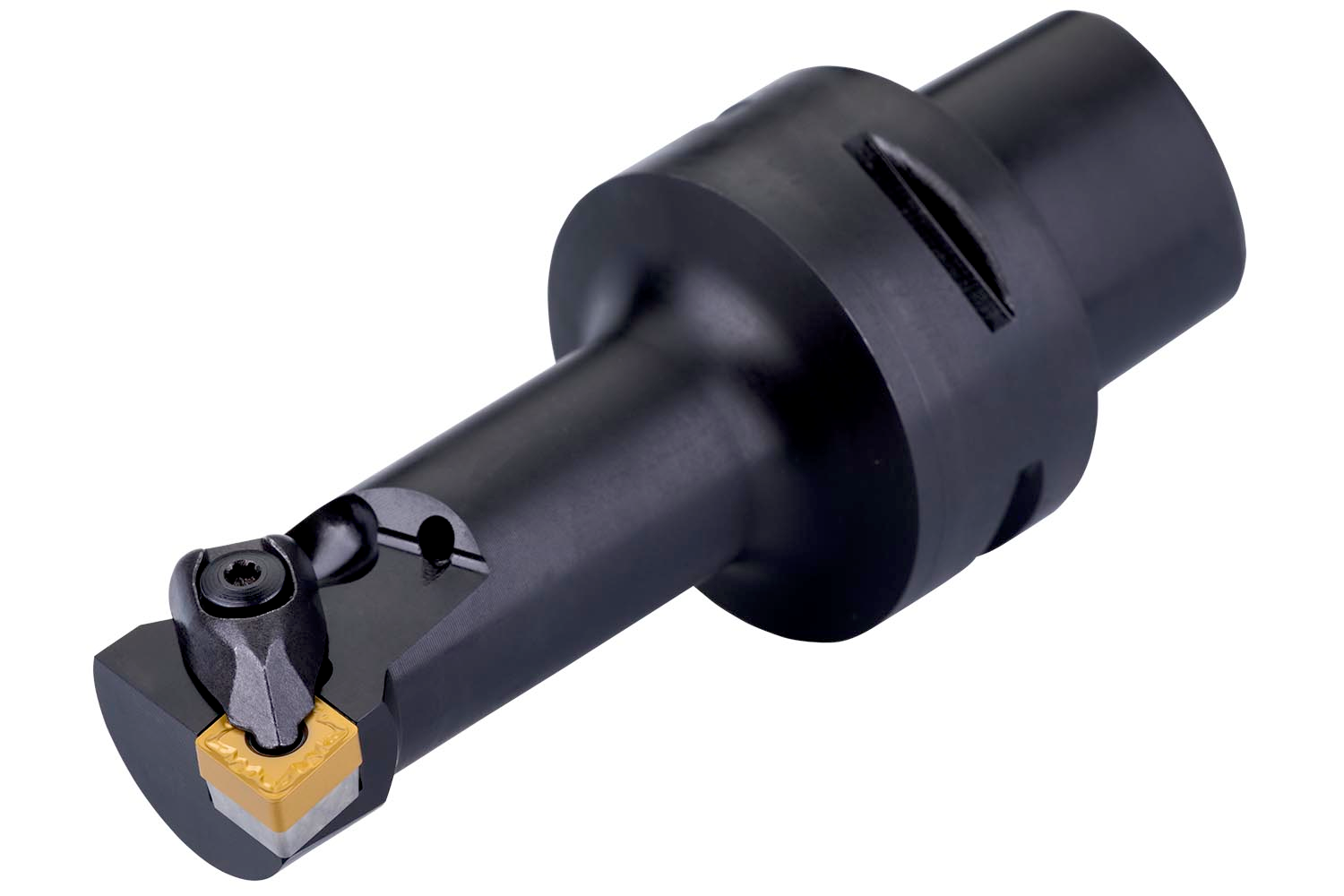

Double clamp boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 9.525 mm, 3.18 mm thick (ISO designation CN.. 0903.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 13 mm funtional width and 80 mm protruding length for taper boring and longitudinal boring with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7809861
