Dormer-Pramet
C4-SDNCN-00050-11
Material ID: 7809839
Sale price
$364.58 CAD
Regular price
$375.00 CAD
C4-SDNCN-00050-11

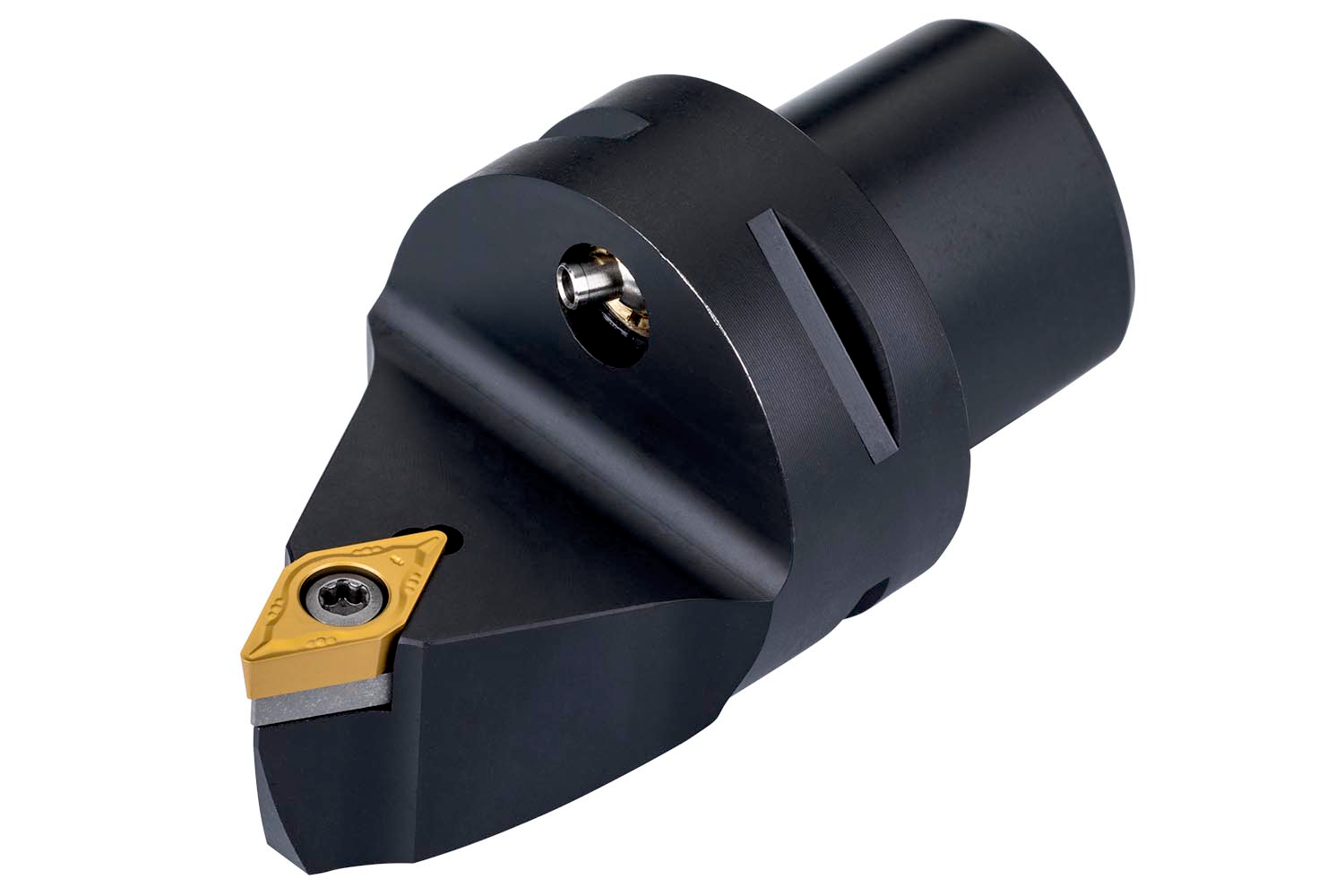

Turning Toolholder Polygon Shank Coupling ISO S - External
Material ID: 7809839
Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation DC.. 11T3.. ), neutral hand 62°30' side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 50 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
