Dormer-Pramet
C5-SDJCR-35060-11
Material ID: 7809838
Sale price
$407.36 CAD
Regular price
$419.00 CAD
C5-SDJCR-35060-11

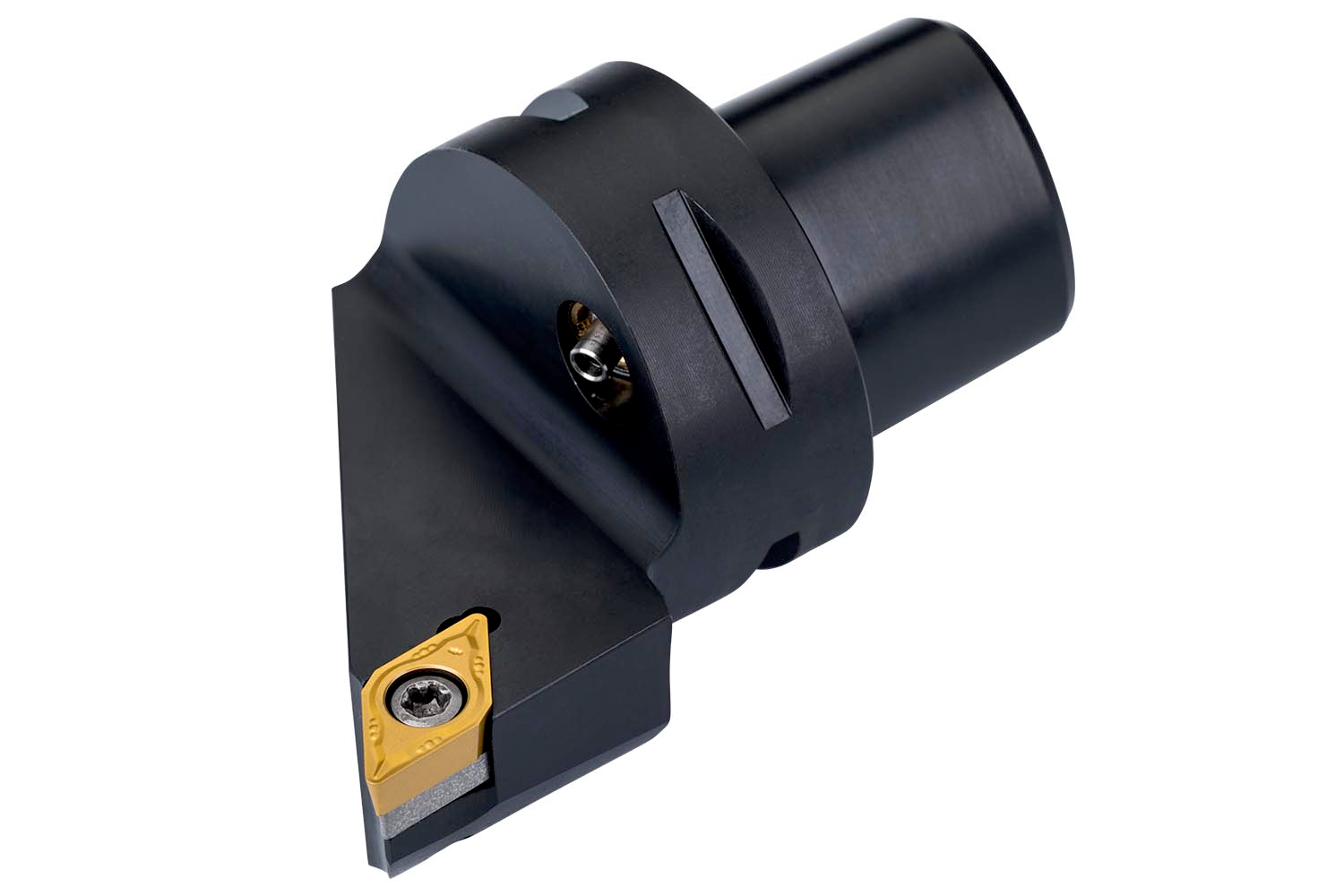

Turning Toolholder Polygon Shank Coupling ISO S - External
Material ID: 7809838
Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation DC.. 11T3.. ), right hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 35 mm funtional width and 60 mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
