Dormer-Pramet

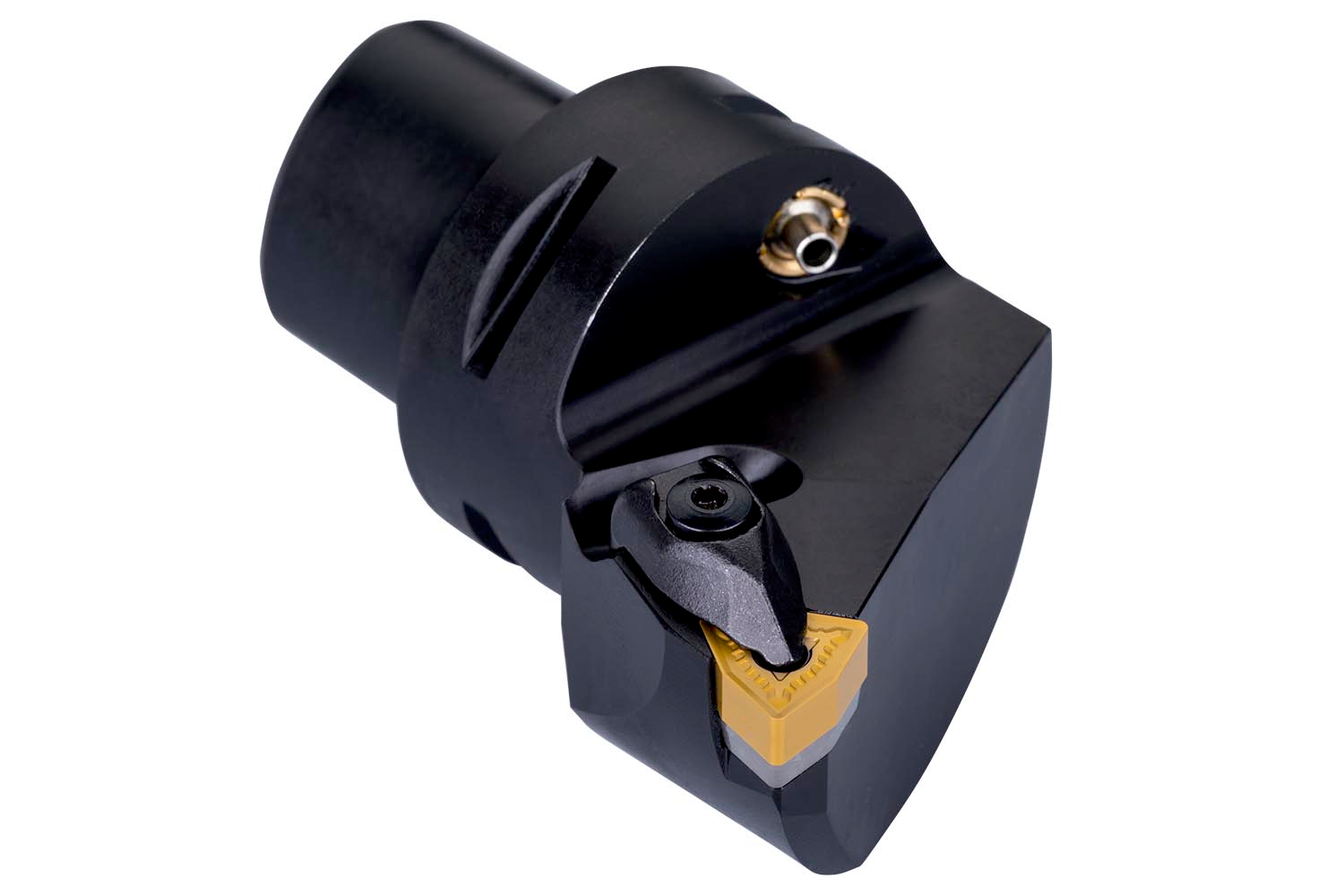

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation WN.. 0604.. ), left hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27 mm funtional width and 50 mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7809818
