Dormer-Pramet

C6-DRSNL-45065-12

Material ID: 7809793

$465.69 CAD $479.00 CAD

C6-DRSNL-45065-12

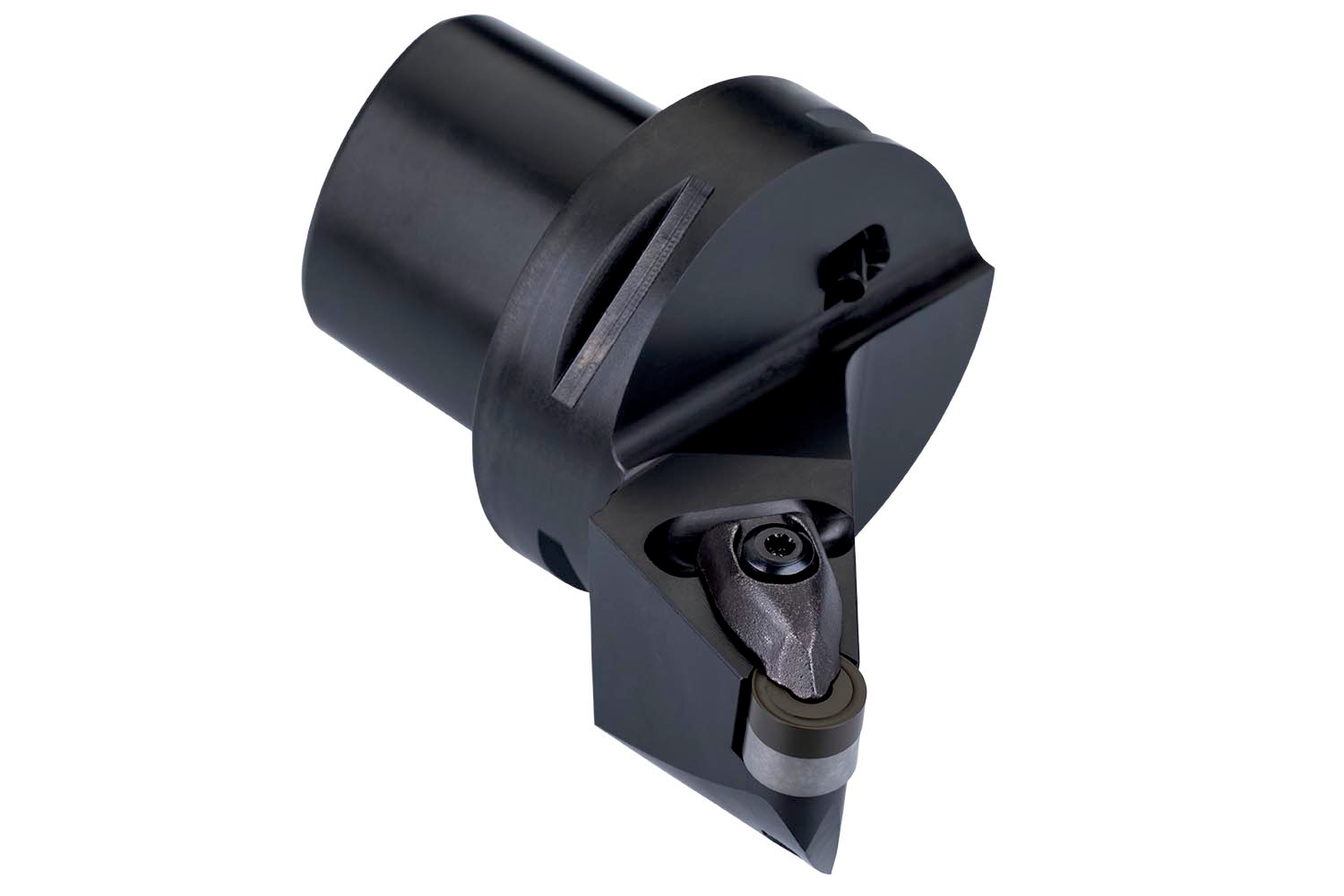

Turning Toolholder Polygon Shank Coupling ISO D - External

Material ID: 7809793


Double clamp turning tool for holding a round negative insert with a diameter of 12.7 mm, 4.76 mm thick (ISO designation RN.. 120400 ), left hand side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45 mm funtional width and 65 mm protruding length for taper turning, face turning without shoulder and longitudinal turning without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7809793
