Dormer-Pramet

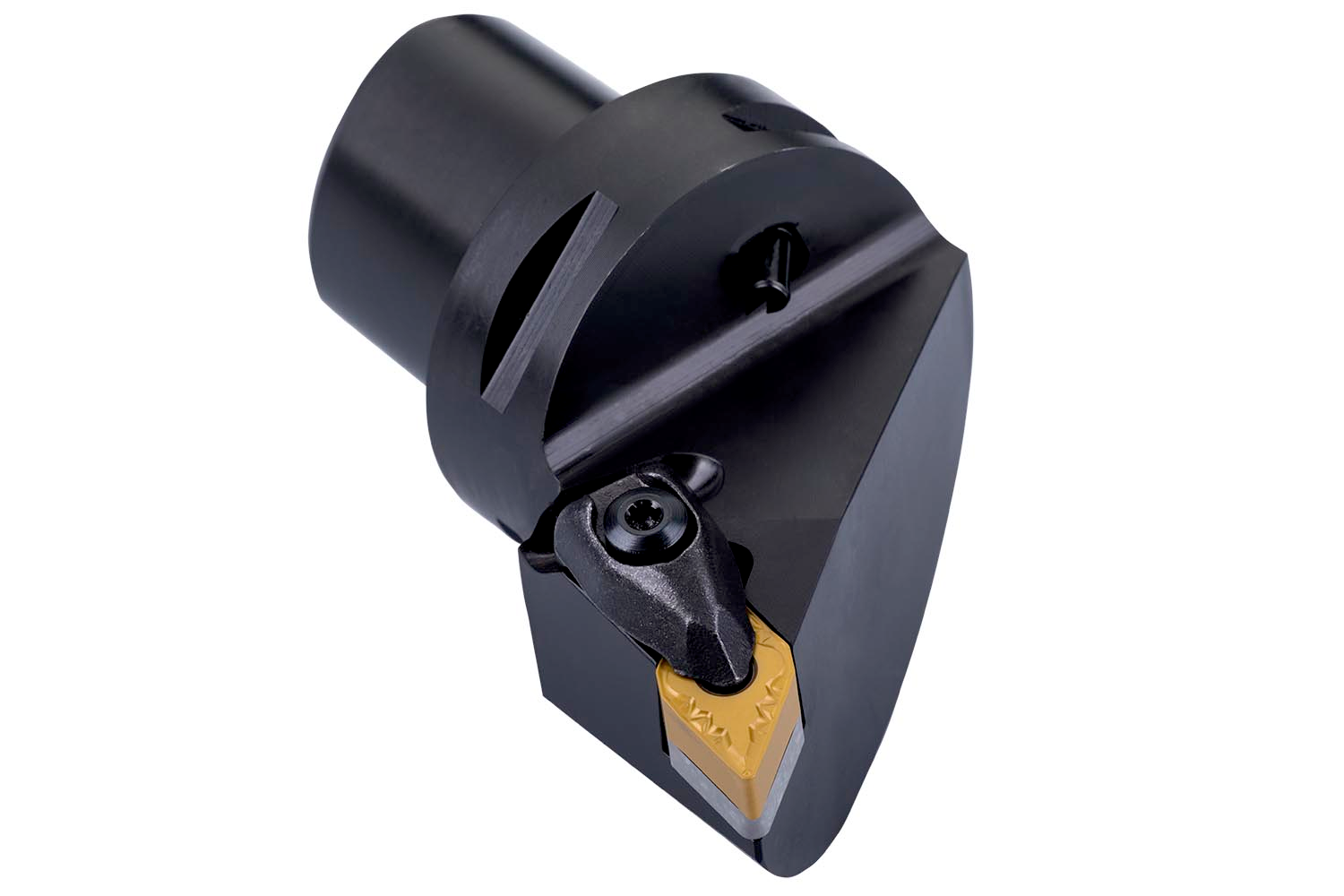

Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7 mm, 6.35 mm thick (ISO designation DN.. 1506.. ), left hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27 mm funtional width and 55 mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7809782
