Dormer-Pramet

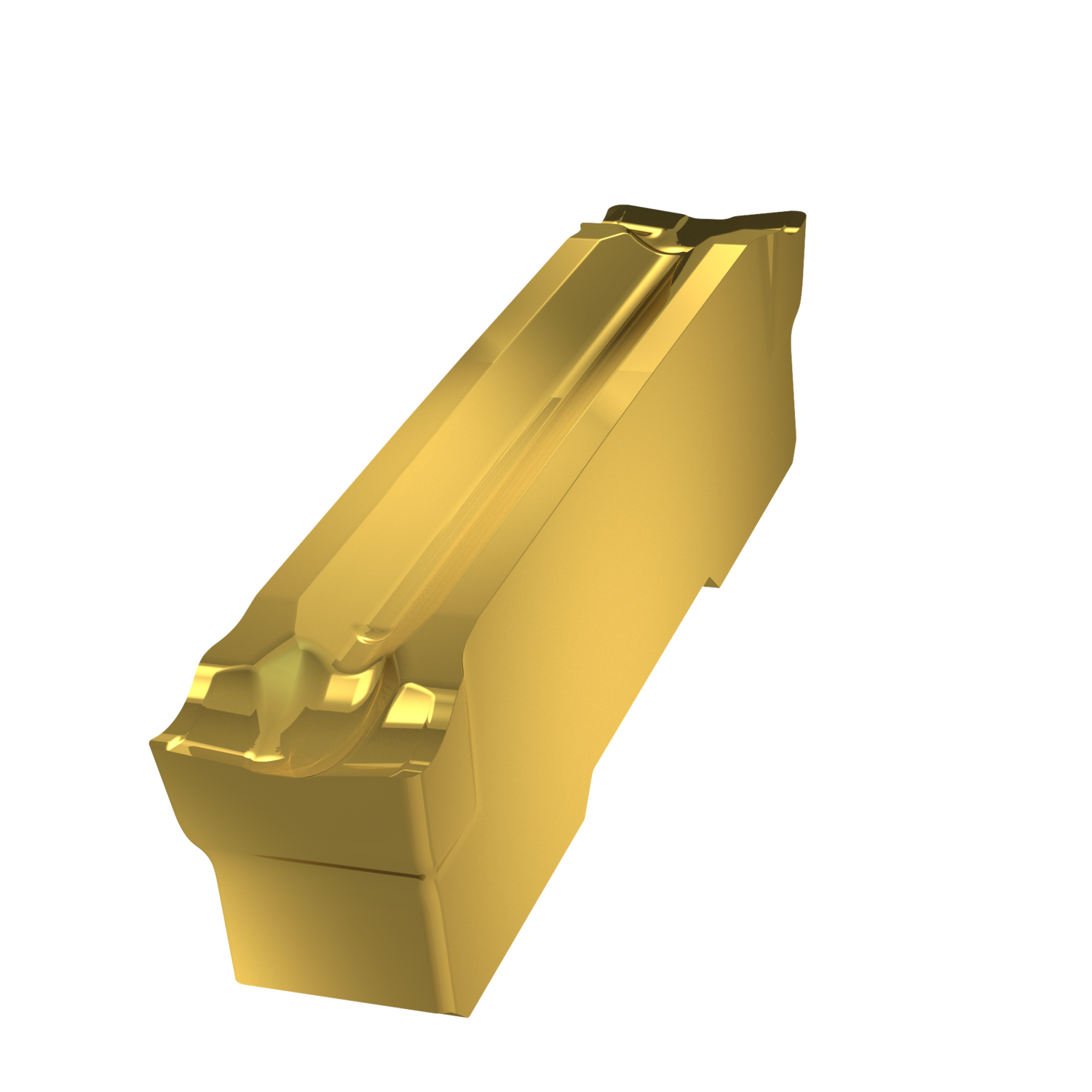

Double ended parting and grooving insert, 25 mm long with a 5 mm cutting width and 0.3 mm corner radii, a cutting width tolerance of ±0.05. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel. PM geometry with highly positive rake, first choice for parting-off, and continuous to slightly interrupted cuts.

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7802945
