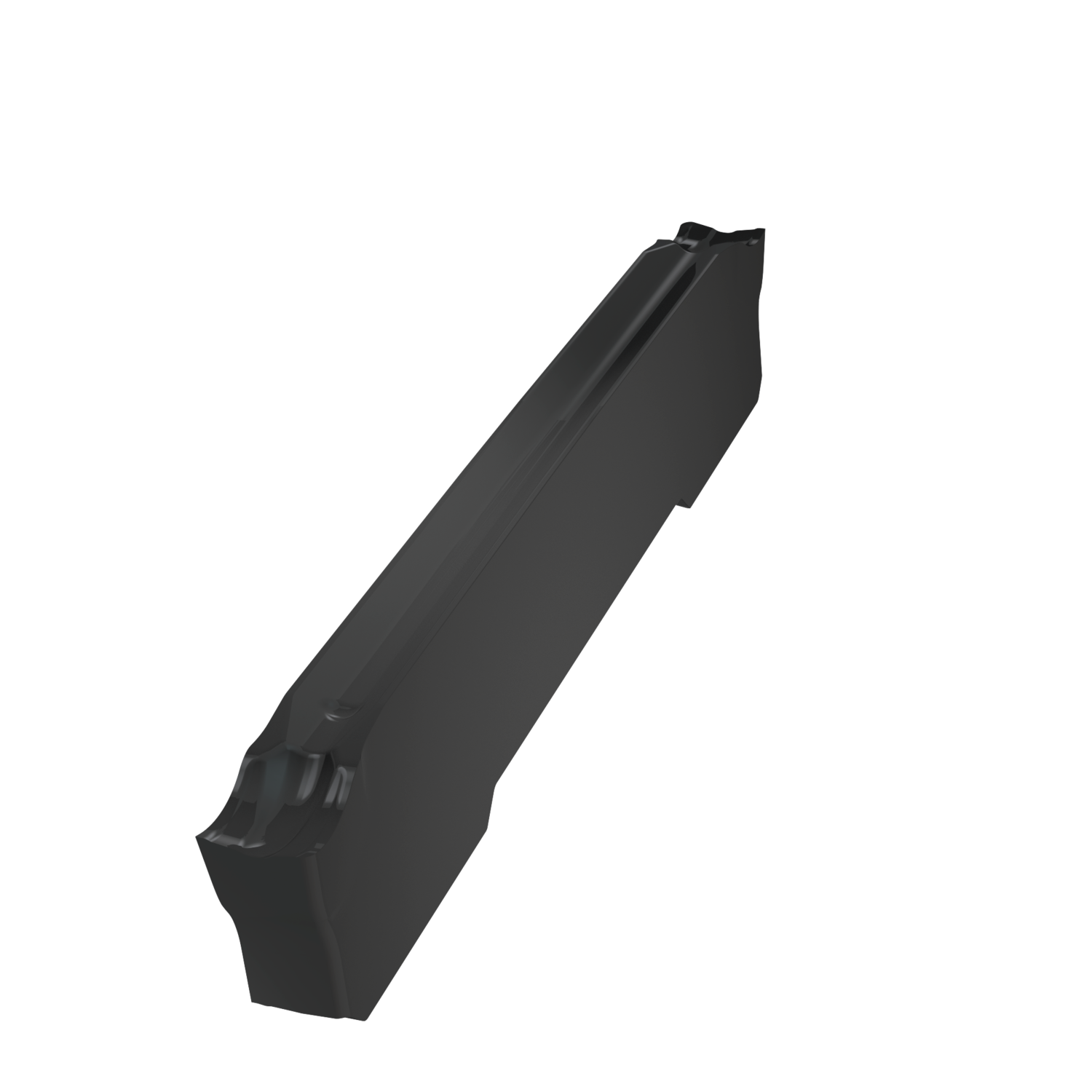

Double ended parting and grooving insert, 25 mm long with a 2 mm cutting width and 0.2 mm corner radii, 6°, a cutting width tolerance of ±0.05. Grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade range M10-M25 for machining of stainless-steel. PM geometry with highly positive rake, first choice for parting-off, and continuous to slightly interrupted cuts.

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7802888
