Dormer-Pramet

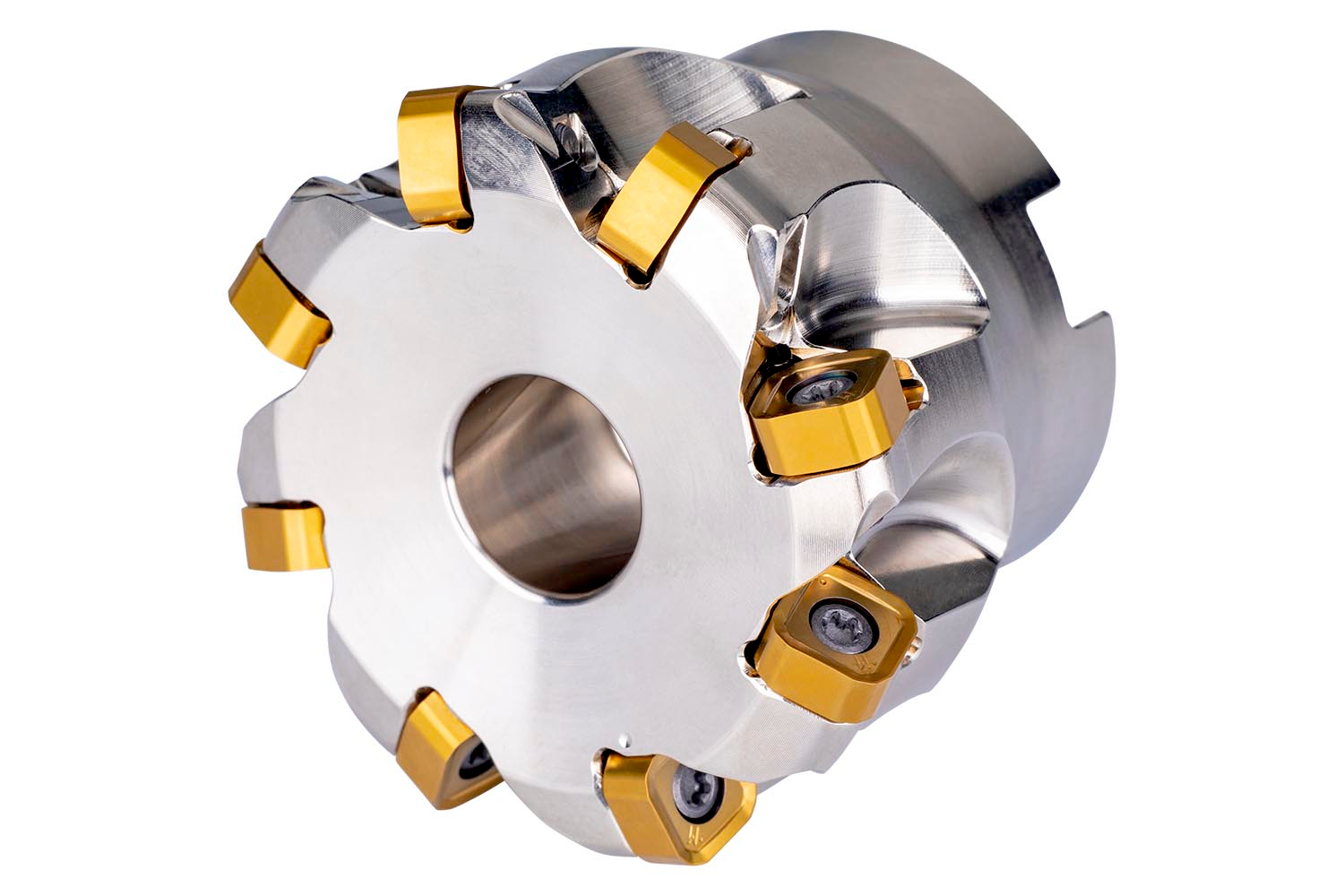

High feed cutter with double negative geometry which utilises 8 of SN.. 11.... double-sided inserts, cutting diameter 66 mm with 18° approach angle and 27 mm connection bore according to DIN 8030-C, 50 mm protrusion length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.7 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7799347
