Dormer-Pramet

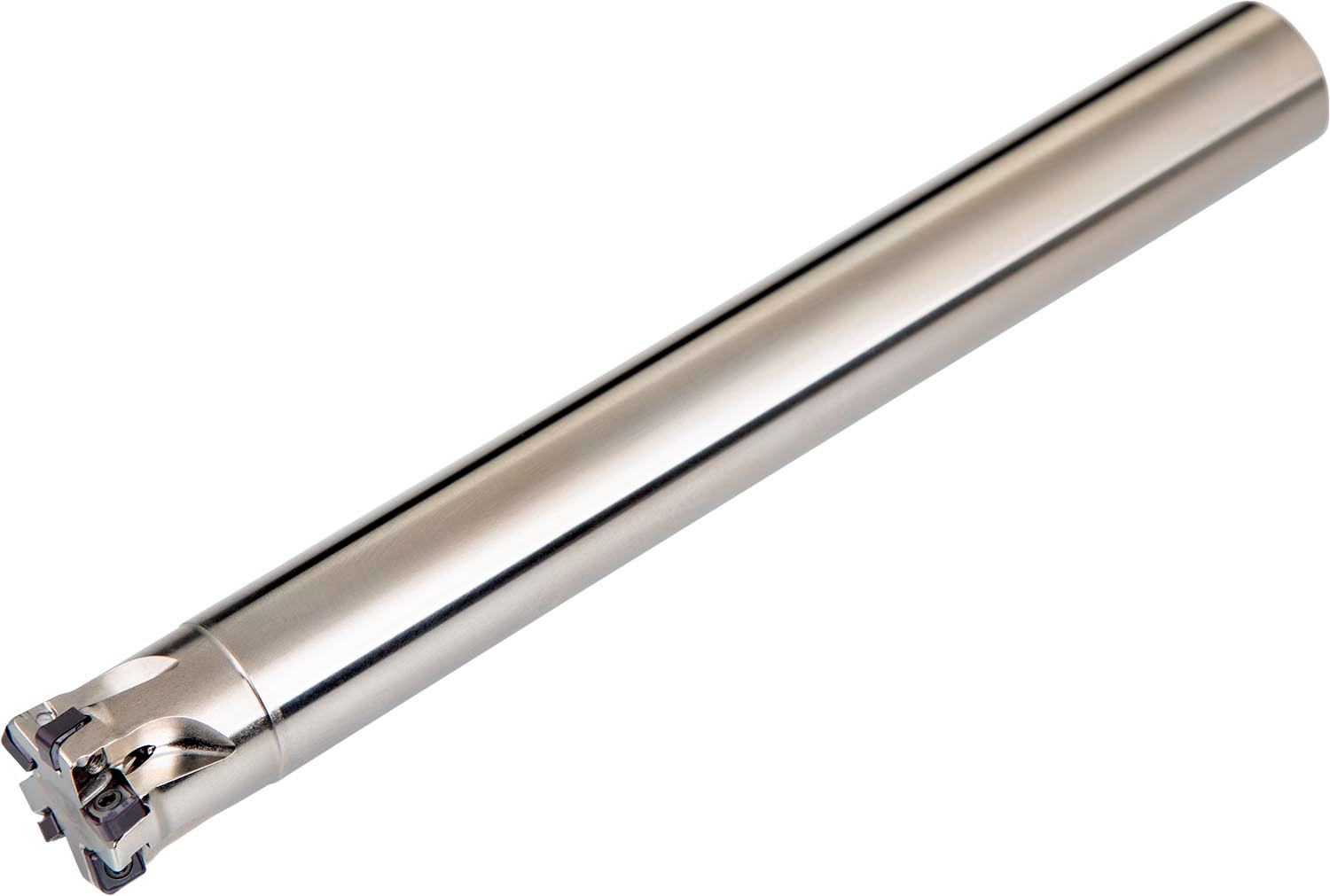

Copy face mill with double negative geometry which utilises 5 of CN.. 05.... double-sided inserts, cutting diameter 20 mm with 93° approach angle and 18 mm parallel shank according to DIN 1835A, 20 mm functional and 160 mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7636578
