Dormer-Pramet

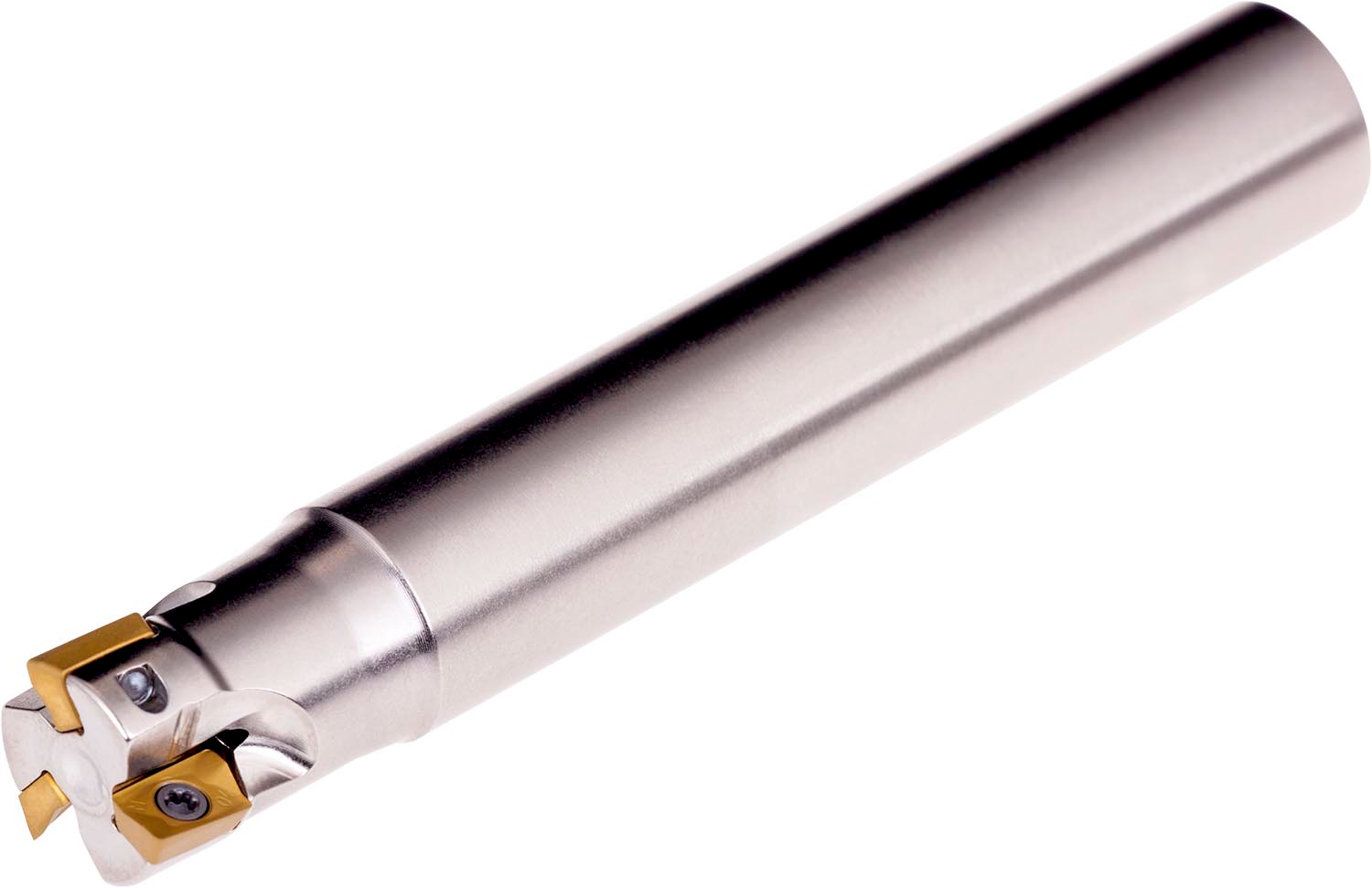

Shoulder mill with positve/negative geometry which utilises 3 of AD.. 07.... or AD.. 07.... single-sided inserts, cutting diameter 14 mm with 90° approach angle and 14 mm parallel shank according to DIN 1835A, 20 mm functional and 90 mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7607336
