Dormer-Pramet

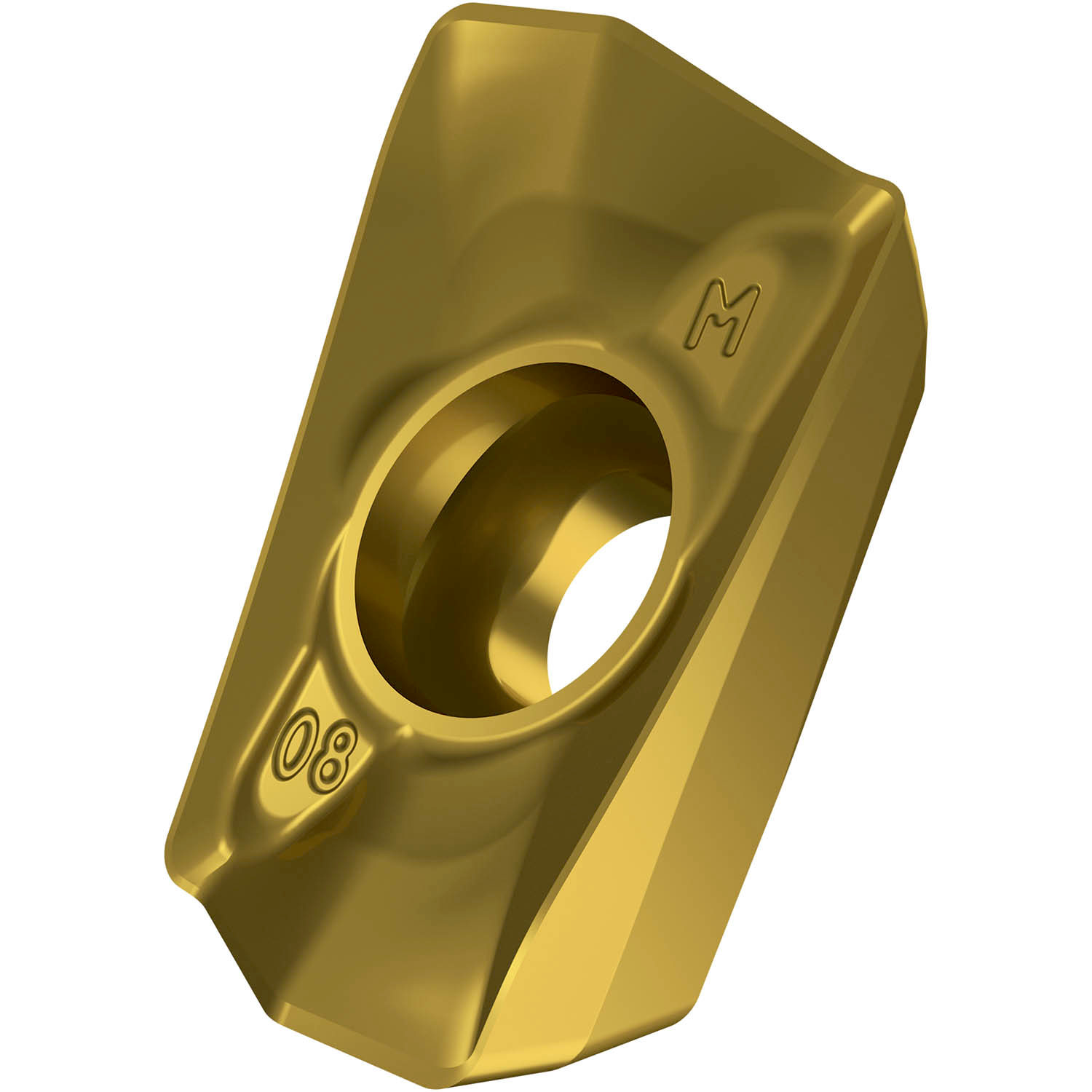

Single-sided milling insert AD.. 16.., 85° parallelogram for a maximum depth of cut of 13.0 mm, with 3.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges P20 -P35 and M20 -M35 for machining of steel and stainless-steel with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7601333
